  • 2SK3700(F)
1/1
  • 2SK3700(F)

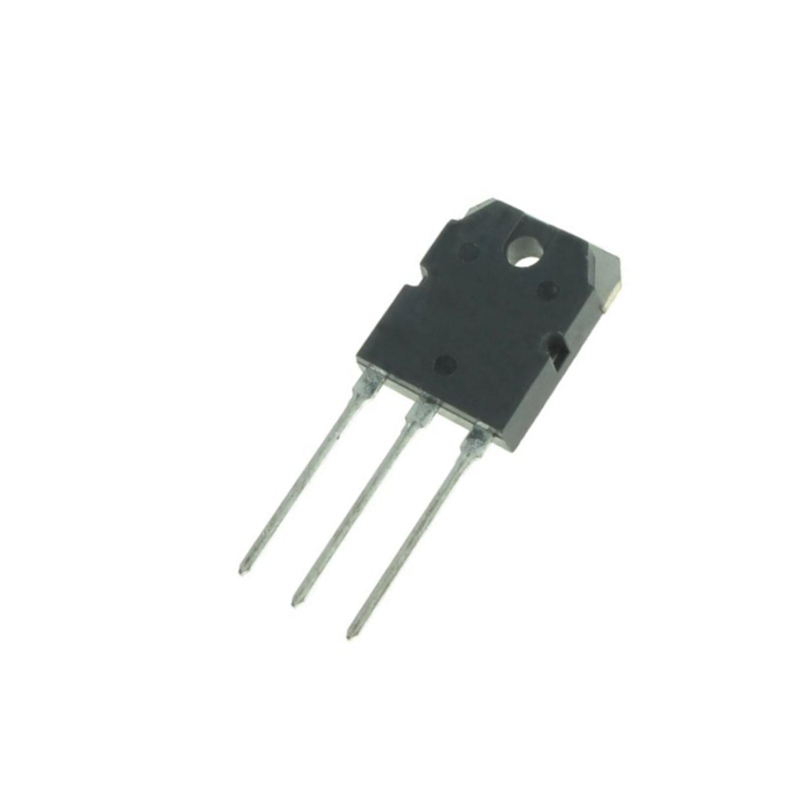

2SK3700(F)

SKU: 2SK3700(F)
Manufacture : Toshiba
Mfr Part Number :2SK3700
Product Category : MOSFETs
Description : Trans MOSFET N-CH Si 900V 5A 3-Pin(3+Tab) TO-3PN
0.0 (0 Reviews)
0 Sold
$0.00 $3.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • 2SK3700(F)
  • 2SK3700(F)
1/1
  • 2SK3700(F)
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture  Toshiba
Application Scope Switching Voltage Regulators
Polarity N-ch
Generation π-MOSⅣ
RoHS Compatible Product(s) (#) Available
Toshiba Package Name → View TO-3P(N)


Package Image → View
JEITA SC-65
Pins 3
Mounting Through Hole
Width×Length×Height(mm)
15.5×20.0×4.5
Package Dimensions →View
CAD data (Symbol, Footprint and 3D model) →View  UltraLibrarian Download from UltraLibrarian® in your desired CAD format (Note)
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Product Category Power MOSFET
Material Si
Configuration Single
Channel Mode Enhancement
Channel Type N
Maximum Drain Source Voltage (V) 900
Maximum Gate Source Voltage (V) ±30
Maximum Continuous Drain Current (A)
5
Maximum Drain Source Resistance (mOhm) 2500@10V
Typical Gate Charge @ Vgs (nC)
28@10V
Maximum DC Collector Current (A) 0.15
Maximum Collector Cut-Off Current (nA) 100
Minimum DC Current Gain 120@2mA@6V
Maximum Power Dissipation (mW) 200
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Supplier Package S-Mini
Pin Count 3
Standard Package Name S-MINI
Lead Shape Gull-wing
