| Product Attribute | Attribute Value |
| Manufacture : | Toshiba |
| Function 1 | Gate |
| Function 2 | 2-Input/NAND |
| Input type | Input-Tolerant |
| Number of Circuits | 4 |
| RoHS Compatible Product(s) (#) | Available |
| Note | TC74VHC00FT products for automotive equipment will continue. Contact your Toshiba sales representative for more details. |

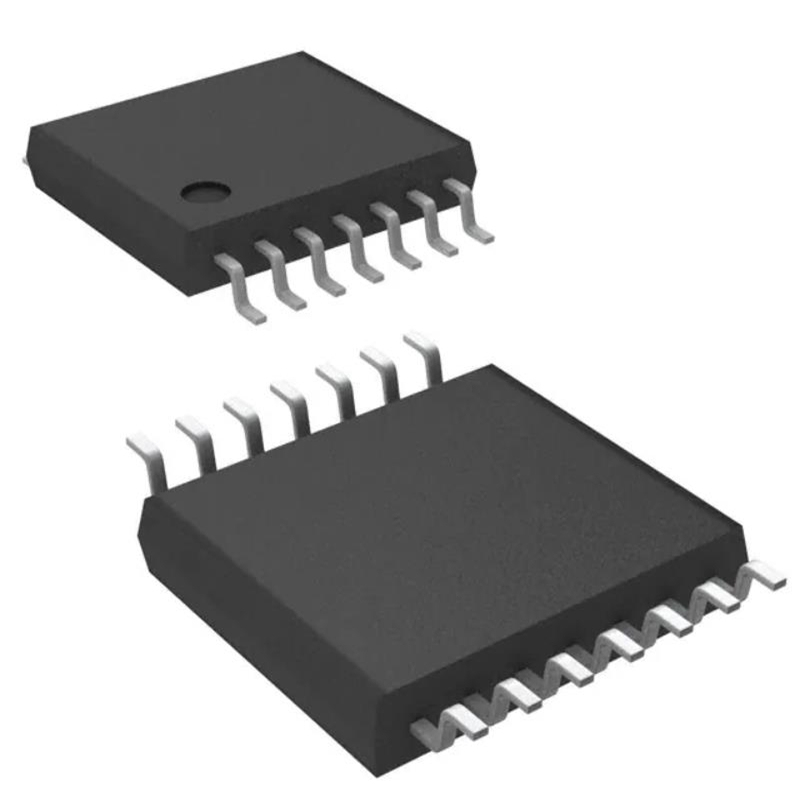

| Toshiba Package Name | →TSSOP14B |
| Package Image | →View |
| Pins | 14 |
| Mounting | Surface Mount |
| Width×Length×Height(mm) | 5.0×6.4×1.0 |
| Package Dimensions | →View |
| Land pattern dimensions | →View |
| CAD data (Symbol, Footprint and 3D model) | ↗ Download from UltraLibrarian® in your desired CAD format (Note) |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | Yes |
| PPAP | Unknown |
| Logic Family | VHC |
| Logic Function | NAND |
| Number of Elements per Chip | 4 |
| Number of Element Inputs | 2-IN |
| Number of Output Enables per Element | 0 |
| Number of Selection Inputs per Element | 0 |
| Number of Element Outputs | 1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 11.4@3.3V|7.5@5V |
| Absolute Propagation Delay Time (ns) | 13 |
| Process Technology | CMOS |
| Maximum Low Level Output Current (mA) | 8 |
| Maximum High Level Output Current (mA) | -8 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Quiescent Current (uA) | 2 |
| Propagation Delay Test Condition (pF) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Standard Package Name | SOP |
| Supplier Package | TSSOP-B |
