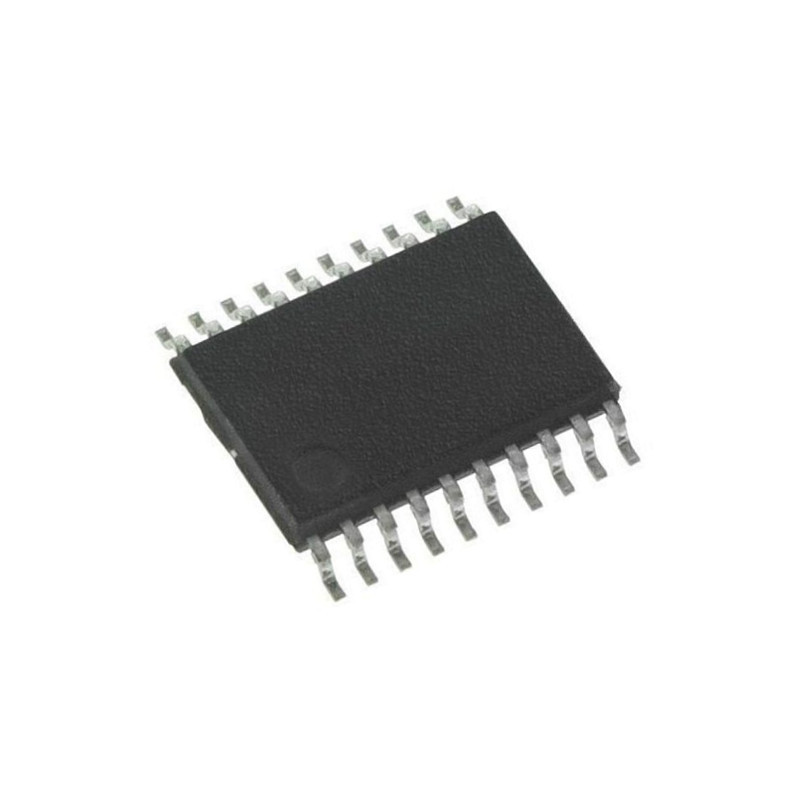

74VHC244FT(BE)

SKU: 74VHC244FT(BE)

Manufacture : TOSHIBA
Mfr Part Number :74VHC244FT
Product Category ：In Stock for Purchase Supplier Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive 20-Pin TSSOP-B T/R

0.0 (0 Reviews)

0 Sold

$1.70

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	TOSHIBA
Mfr Part Number	74VHC244FT
Datasheet	→View 74VHC244FT Datasheet PDF
Function 1	Buffer/Transceiver
Function 2	Buffer
Input type	Input-Tolerant
Output type	3-State-Output
Number of Circuits	8
RoHS Compatible Product(s) (#)	Available
Note	TC74VHC244FT products for automotive equipment will continue. Contact your Toshiba sales representative for more details.
Toshiba Package Name	→ View TSSOP20B
Package Image
Pins	20
Mounting	Surface Mount
Width×Length×Height (mm)	6.5×6.4×1.0

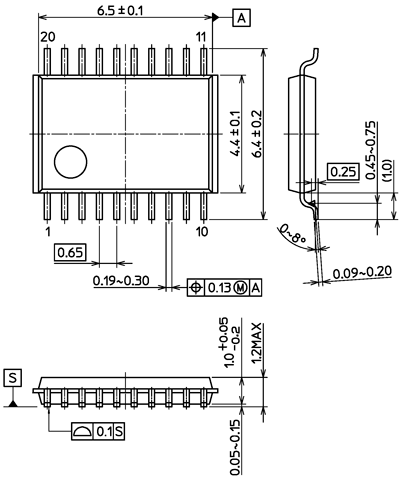

Package Dimensions
Land pattern dimensions
CAD data (Symbol, Footprint and 3D model)	→View Download from UltraLibrarian^® in your desired CAD format (Note)
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542330001
Automotive	Yes
PPAP	Unknown
Logic Family	VHC
Logic Function	Buffer/Line Driver
Number of Elements per Chip	2
Number of Channels per Chip	8
Number of Inputs per Chip	8
Number of Input Enables per Chip	0
Number of Outputs per Chip	8
Number of Output Enables per Chip	2 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	11.9@3.3V\|7.5@5V
Absolute Propagation Delay Time (ns)	16
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	8
Maximum High Level Output Current (mA)	-8
Minimum Operating Supply Voltage (V)	2
Typical Operating Supply Voltage (V)	2.5\|3.3\|5
Maximum Operating Supply Voltage (V)	5.5
Maximum Quiescent Current (uA)	4
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	180
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Automotive
Packaging	Tape and Reel
Lead Shape	Gull-wing
