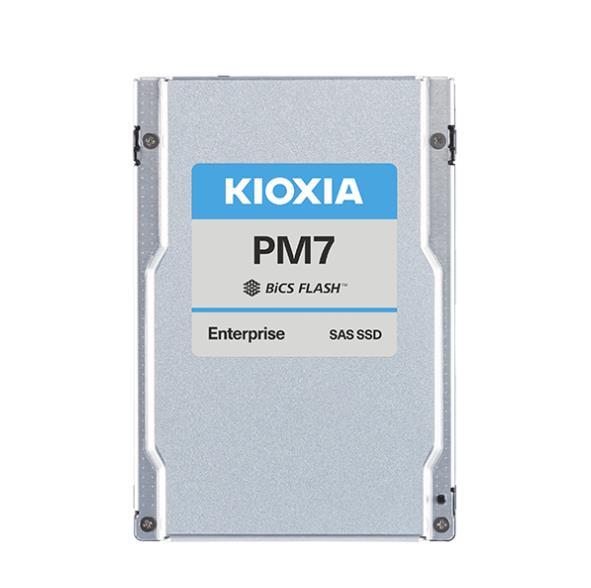

• KIOXIA PM7-R KPM71RUG7T68 SAS-4 enterprise SSD
1/1
  • KIOXIA PM7-R KPM71RUG7T68 SAS-4 enterprise SSD

FORWARD KIOXIA KPM71RU7T68 SAS-4 PM7-R Enterprise SSD 1 DWPD

SKU:

KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

0.0 (0 Reviews)
0 Sold
$0.00 $1,350.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • KIOXIA PM7-R KPM71RUG7T68 SAS-4 enterprise SSD
  • KIOXIA PM7-R KPM71RUG7T68 SAS-4 enterprise SSD
1/1
  • KIOXIA PM7-R KPM71RUG7T68 SAS-4 enterprise SSD
  • Description
  • Please Read

KIOXIA PM7-R Series (2.5-inch)


KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Key Features


  • 24G SAS interface with single/dual-port support
  • Capacities from 1.92 TB to 30.72 TB
  • Up to 720K random read IOPS (4 KiB) in dual-port mode
  • 2.5-inch form factor, 15 mm thickness
  • 1 DWPD with 100 % Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF
  • Security options: SIE, SED, FIPS SED[1][2][3][4][5]
  • 5-year limited warranty

Key Applications

  • Data warehousing
  • Streaming media
  • Video on demand (VOD)
  • Web servers

Specifications

* Table can be scrolled horizontally.

Base Model Number KPM71RUG30T7 KPM71RUG15T3 KPM71RUG7T68 KPM71RUG3T84 KPM71RUG1T92
SIE Model Number KPM7XRUG30T7 KPM7XRUG15T3 KPM7XRUG7T68 KPM7XRUG3T84 KPM7XRUG1T92
SED Model Number KPM7VRUG30T7 KPM7VRUG15T3 KPM7VRUG7T68 KPM7VRUG3T84 KPM7VRUG1T92
FIPS SED Model Number KPM7WRUG30T7 KPM7WRUG15T3 KPM7WRUG7T68 KPM7WRUG3T84 KPM7WRUG1T92
Capacity 30,720 GB 15,360 GB 7,680 GB 3,840 GB 1,920 GB
Basic Specifications
Form Factor 2.5-inch, 15mm thickness
lnterface SAS-4
Maximum Interface Speed 22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory Type BiCS FLASH™ TLC
Basic Specifications
Sustained 128 KiB Sequential Read 4,150 MB/s 4,200 MB/s
Sustained 128 KiB Sequential Write 3,200 MB/s 4,100 MB/s 3,650 MB/s 3,400 MB/s
Sustained 4 KiB Random Read 720K IOPS
Sustained 4 KiB Random Write 80K IOPS 160K IOPS 175K IOPS 155K IOPS
Power Requirements
Supply Voltage 12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (Ready) 5 W typ.
Reliability
MTTF 2,500,000 hours
Warranty 5 years
DWPD 1
Dimensions
Thickness 15.0 mm +0 / -0.5 mm
Width 69.85 mm ± 0.25 mm
length 100.45 mm Max
Weight 130 g Max
Environmental
Temperature (Operating) 0 °C to 70 °C
Temperature(Non-operating) -40 °C to 85 °C
Humidity (Operating) 5 % to 95 % R.H.
Vibration (Operating) 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating) 9.8 km/s2 { 1,000 G } ( 0.5 ms )


  • Product image may represent a design model.
  • Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
  • A kibibyte (KiB) means 2^10, or 1,024 bytes.
  • MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
  • DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
  • Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
  • IOPS: Input Output Per Second (or the number of I/O operations per second).
  • [1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
  • [2] SIE optional model supports Crypto Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
  • [3] SED optional model supports TCG Enterprise SSC.
  • [4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-2 and FIPS 140-3, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
  • [5] Security optional models are not available in all countries due to export and local regulations.
  • Other company names, product names, and service names may be trademarks of third-party companies.
