| Product Attribute | Attribute Value |
| Manufacture : | Toshiba |
| Datasheet : | → SSM6N44FE Datasheet (PDF) |
| Feature ： | High ESD protected |
| Polarity ： | N-ch×2 |
| Generation ： | π-MOSⅥ |
| Internal Connection ： | Independent |
| Component Product (Q1) : | SSM3K44FS |
| Component Product (Q2) ： | SSM3K44FS |
| AEC-Q101 ： | Qualified(*) |
| RoHS Compatible Product(s) (#) ： | Available |
| Safety Standard : | Approved : UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 / EN 60065 / EN 60950-1 / CQC (China Quality Certification center)
→ Download Online Certification of Safety Standard(UL 1577)
|
| Toshiba Package Name ： | →ES6 |

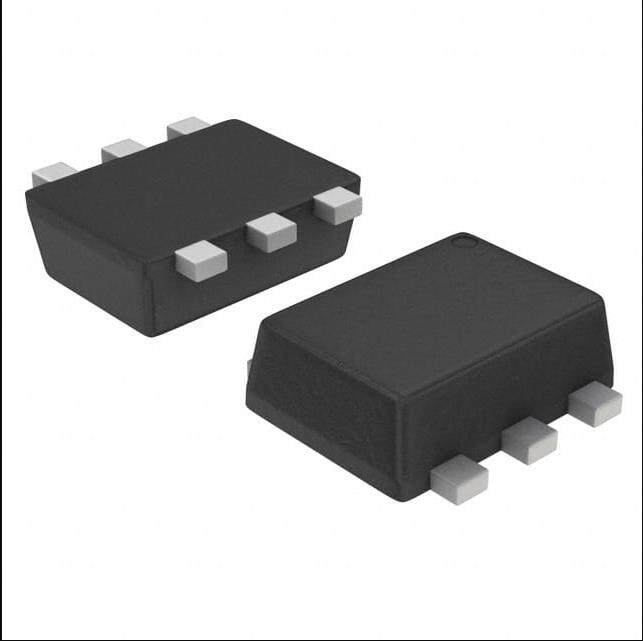

| Package Image ： | → View |
| JEITA : | SC-107C |
| Package Code : | SOT-563 |
| Pins : | 6 |
| Mounting : | Surface Mount |
| Width×Length×Height (mm) : | 1.6×1.6×0.55 |
| Package Dimensions : | → View |
| Land pattern dimensions : | → View |
| CAD data (Symbol, Footprint and 3D model) : | ↗ Download from UltraLibrarian® in your desired CAD format (Note) |
| Operating Temperature Classification : | Military |
| Operating Temp Range : | -55C to 150C |
| Packaging : | Tape and Reel |
| Type : | Small Signal |
| Rad Hardened : | No |
| Package Type : | ES |
| Polarity : | N |
| Channel Mode : | Enhancement |
| Drain-Source On-Volt : | 20(V) |
| Number of Elements : | 2 |
| Continuous Drain Current : | 0.1(A) |
