| Product Attribute | Attribute Value |
| Manufacture | Toshiba |
| Function | Full, Half, Quarter step resolution / BiCD 2-phase bipolar stepping motor driver / Phase inputs / PWM constant current drive |
| Application Scope | Bipolar stepping motor drivers |
| Class | 2-phase bipolar stepper + push-pull driver |
| Number of drive motors (stepping motor) | 1 |
| RoHS Compatible Product(s) (#) | Available |
| Toshiba Package Name | P-WQFN48-0707-0.50-003 |

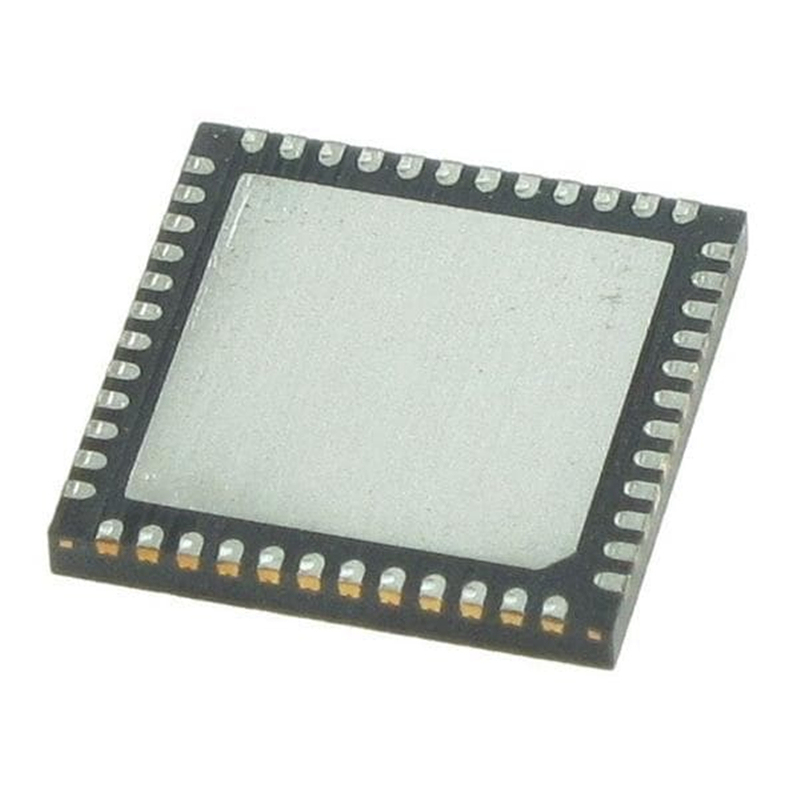

| Package Image |  |
| Pins | 48 |
| Mounting | Surface Mount |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Type | Motor Driver |
| Motor Type | Stepper Motor |
| Output Voltage (V) | 40(Max) |
| Minimum Operating Supply Voltage (V) | 10 |
| Operating Supply Voltage (V) | 10 to 38 |
| Typical Operating Supply Voltage (V) | 24 |
| Maximum Operating Supply Voltage (V) | 38 |
| Maximum Operating Current (mA) | 7 |
| Maximum Power Dissipation (mW) | 1300 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Package | WQFN EP |
| Mounting | Surface Mount |
