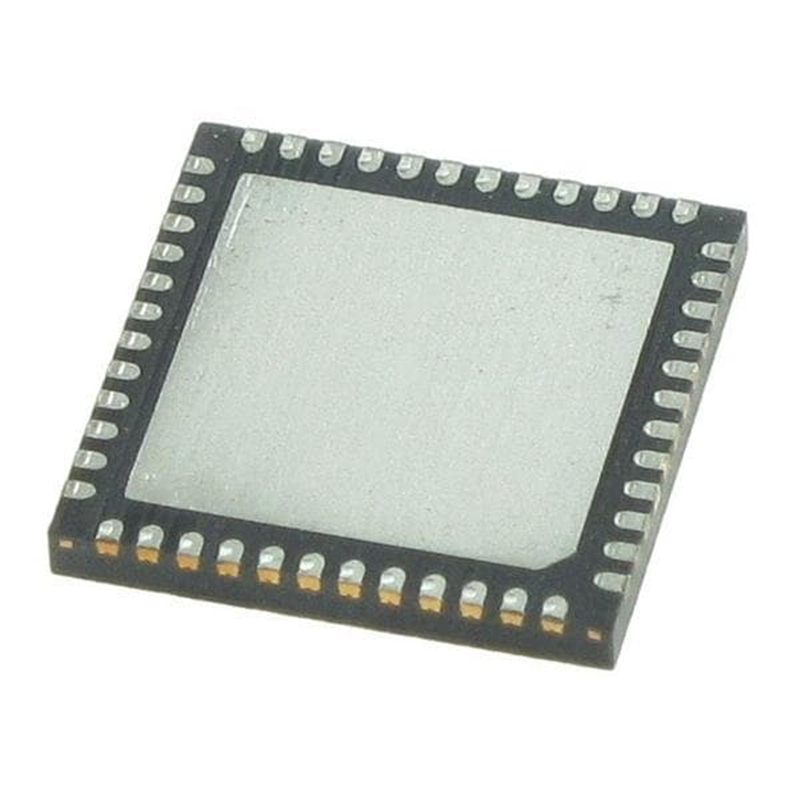

TB62269FTG(O,ELQ

SKU: TB62269FTG(O,ELQ
Manufacture : Toshiba
Mfr Part Number :TB62269FTG
Product Category : H-Bridge Motor Driver 24V 48-Pin WQFN EP
0.0 (0 Reviews)
0 Sold
$0.00 $3.80
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TB62269FTG(O,ELQ
  • TB62269FTG(O,ELQ
1/1
  • TB62269FTG(O,ELQ
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture  Toshiba
Function Full, Half, Quarter, 1/8, 1/16, 1/32 step resolution
/ BiCD 2-phase bipolar stepping motor driver
/ PWM constant current drive / Built-in microstep decoder / Clock-in type
Application Scope Bipolar stepping motor drivers
Class 2-phase bipolar stepper + push-pull driver
Number of drive motors (stepping motor) 1
RoHS Compatible Product(s) (#) Available
Toshiba Package Name P-WQFN48-0707-0.50-003
Package Image
Pins 48
Mounting Surface Mount
EU RoHS Supplier Unconfirmed
ECCN (US) EAR99
Automotive No
PPAP No
Type Motor Driver
Motor Type Stepper Motor
Step Modes 1, 1/2, 1/4, 1/8, 1/16, 1/32
Control Interface PWM
Output Configuration H-Bridge
Output Voltage (V) 40(Max)
Maximum Output Current (A) 1.8
Minimum Operating Supply Voltage (V) 10
Operating Supply Voltage (V) 10 to 38
Typical Operating Supply Voltage (V) 24
Maximum Operating Supply Voltage (V) 38
Maximum Operating Current (mA) 7
Maximum Power Dissipation (mW) 1300
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 85
Supplier Package WQFN EP
Pin Count 48
Standard Package Name QFN
