• TB6560AHQ(O,8)
1/1
  • TB6560AHQ(O,8)

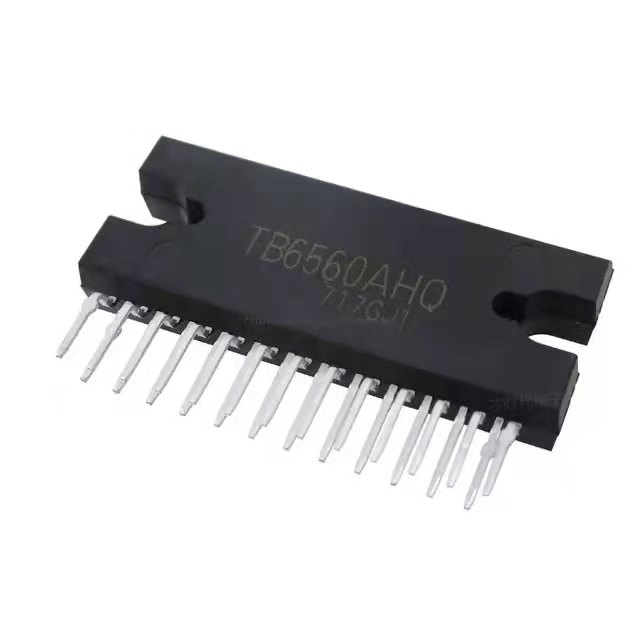

TB6560AHQ(O,8)

SKU: TB6560AHQ(O,8)
Manufacture : TOSHIBA
Mfr Part Number :TB6560AHQ
Product Category :In Stock For Purchase Supplier Stepping motor driver IC 5V 25-Pin HZIP
0.0 (0 Reviews)
0 Sold
$0.00 $2.38
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TB6560AHQ(O,8)
  • TB6560AHQ(O,8)
1/1
  • TB6560AHQ(O,8)
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture

TOSHIBA

Mfr Part Number

TLP172GM(TPL,E(O

Datasheet

→View TB6560AHQ  Datasheet PDF

Feature Select current decay mode / Clock-in type / High output current / Low R-on / Bipolar
Class 2-phase stepping motor driver
Number of drive motors (stepping motor) 1
Toshiba Package Name HZIP25-P-1.27
Package Image
Pins 25
Mounting Through Hole
EU RoHS Compliant with Exemption
ECCN (US) EAR99
Part Status Active
HTS 8542330001
SVHC Yes
SVHC Exceeds Threshold Yes
Automotive No
PPAP No
Type Motor Driver
Motor Type Stepper Motor
Minimum Operating Supply Voltage (V) 4.5
Operating Supply Voltage (V) 5
Typical Operating Supply Voltage (V) 5
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Current (mA) 5
Maximum Power Dissipation (mW) 43000
Minimum Operating Temperature (°C) -30
Maximum Operating Temperature (°C) 85
