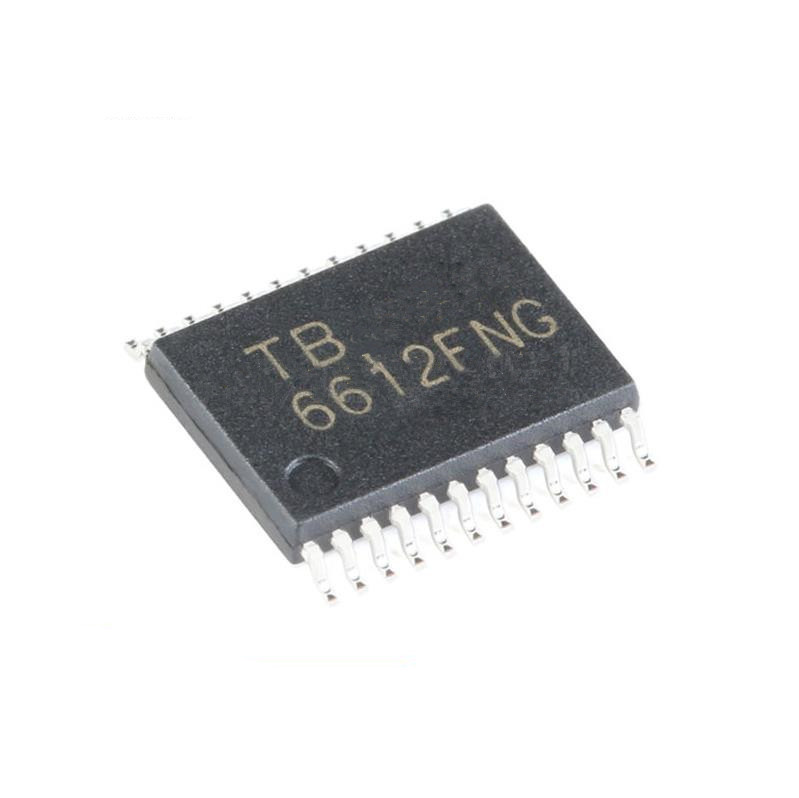

TB6612FNG(O,C,8,EL

SKU: TB6612FNG(O,C,8,EL
Manufacture : Toshiba
Mfr Part Number :TB6612FNG
Product Category :In Stock For Purhcase Supplier DC Motor Driver 3V 24-Pin SSOP T/R Brush motor driver IC
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TB6612FNG(O,C,8,EL
  • TB6612FNG(O,C,8,EL
1/1
  • TB6612FNG(O,C,8,EL
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TB6612FNG(O,C,8,EL

Datasheet

→View TB6612FNG  Datasheet PDF

Function Standby (power-save) mode / CW/CCW/Short BRAKE/STOP function
Application Scope General-purpose
Class Full-bridge driver for brushed DC motors
Number of drive motors (brush moter) 2
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View  SSOP24-P-300-0.65A
Package Image
Pins 24
Mounting Surface Mount
Package Dimensions
Land pattern dimensions
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8542.39.00.01
Automotive No
PPAP No
Type Motor Driver
Motor Type DC Motor
Output Voltage (V) 15(Max)
Minimum Operating Supply Voltage (V) 2.7
Operating Supply Voltage (V) 3
Typical Operating Supply Voltage (V) 3
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Current (mA) 2.2
Maximum Power Dissipation (mW) 1360
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 85
Lead Shape Gull-wing
