  • TB67B001FTG,EL

TB67B001FTG,EL

SKU: TB67B001FTG,EL
Manufacture : TOSHIBA
Mfr Part Number :TB67B001FTG
Product Category :In Stock For Purchase Supplier Motor Controller and Driver ICs Triple Half Bridge Motor Driver 12V/5V 36-Pin VQFN EP T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TB67B001FTG,EL
  • TB67B001FTG,EL
1/1
  • TB67B001FTG,EL
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture

TOSHIBA

Mfr Part Number

TB67B001FTG,EL

Datasheet

→View TB67B001FTG Datasheet PDF

Function
PWM type
Application Scope 3-phase brushless motor drivers
Class 3-phase sensorless driver
Number of drive motors (brushless motor) 1
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View  P-VQFN36-0505-0.50-001

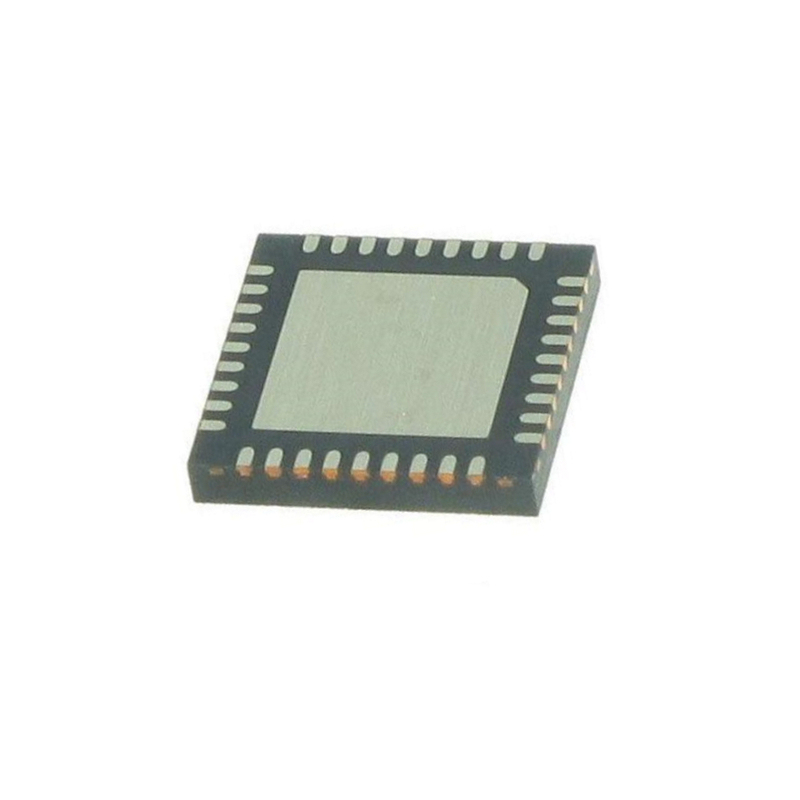

Package Image
Pins 36
Mounting Surface Mount

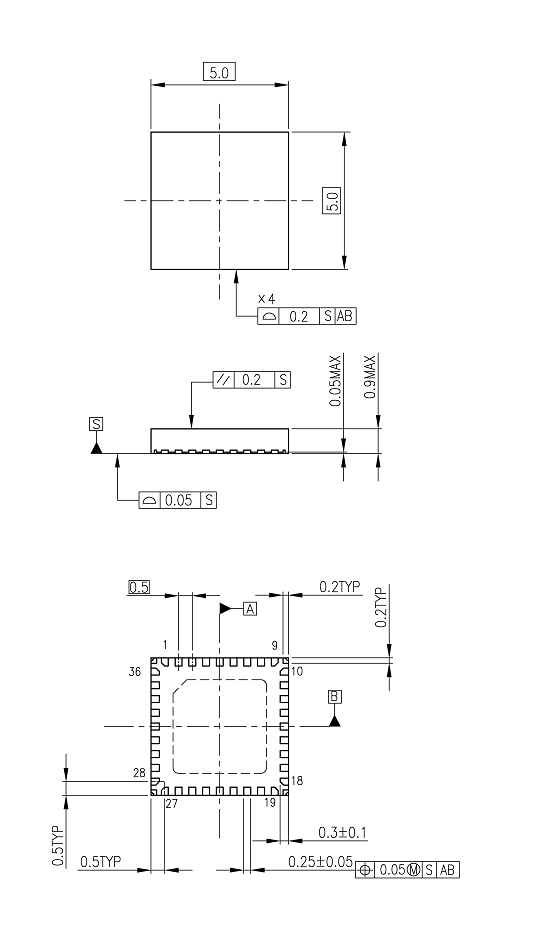

Package Dimensions

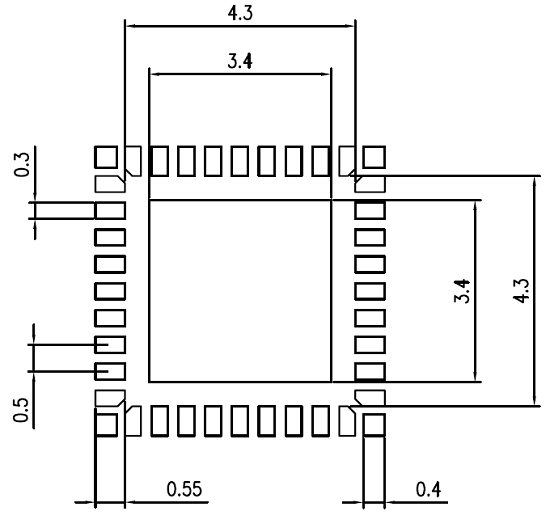

Land pattern dimensions
EU RoHS Compliant
ECCN (US) EAR99
HTS 8542330001
Automotive No
PPAP No
Type Motor Driver
Motor Type Brushless DC Motor
Control Interface PWM
Output Configuration Triple Half Bridge
Output Voltage (V) 25(Max)
Maximum Output Current (A) 3
Minimum Operating Supply Voltage (V) 5.5|4
Operating Supply Voltage (V) 5.5 to 22|4 to 5.5
Typical Operating Supply Voltage (V) 12|5
Maximum Operating Supply Voltage (V) 22|5.5
Maximum Operating Current (mA) 8.5
Maximum Power Dissipation (mW) 2800
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 105
Packaging Tape and Reel
