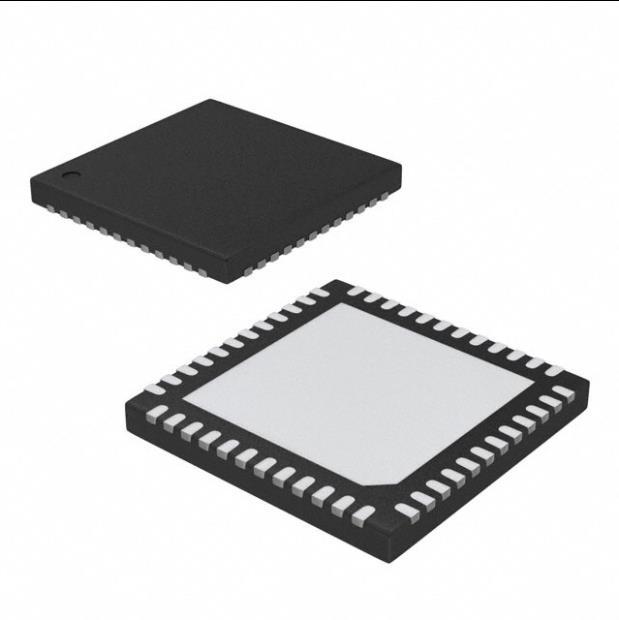

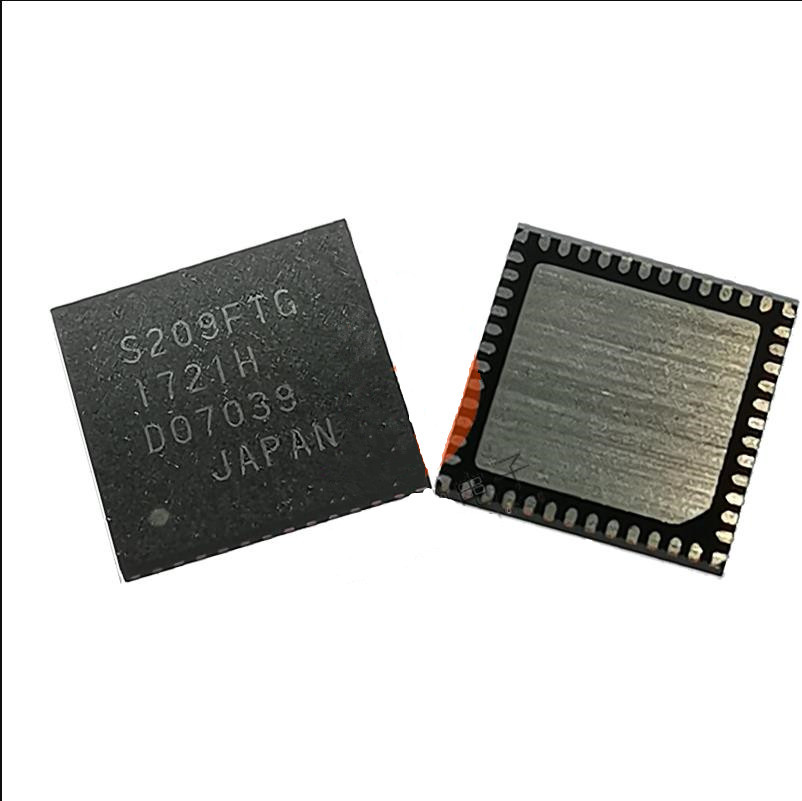

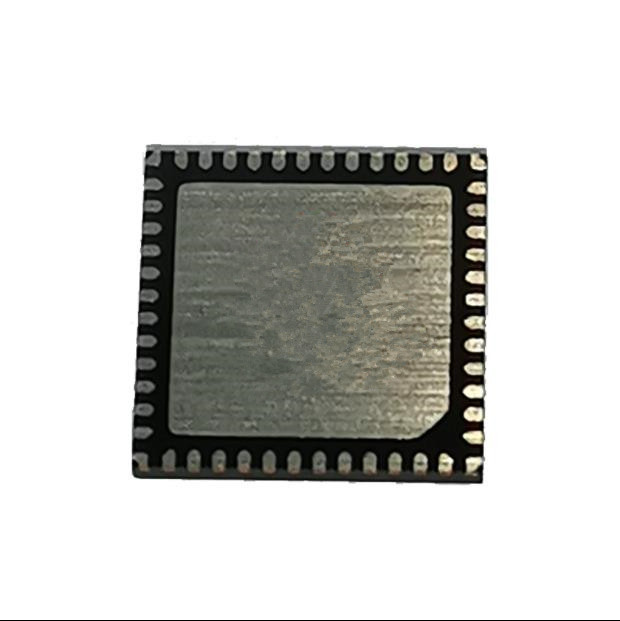

TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic

SKU: TB67S209FTG(O,EL)
The TB67S209FTG is a two-phase bipolar stepping motor driver using a PWM chopper. The clock in decoder is built in.
Fabricated with the BiCD process, rating is 50 V/4.0 A.
0.0 (0 Reviews)
0 Sold
$2.99 $2.29
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
1/1
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • TB67S209FTG QFN CLOCK-in Controlled IC Bipolar Stepping Motor Driver BiCD Integrated Circuit Silicon Monolithic
  • Description
  • Please Read
Toshiba TB67S209FTG CLOCK-in controlled Bipolar Stepping Motor Driver

If you need large quantity please contact us with a wholesale price.

Features

・ BiCD process integrated monolithic IC.
・ Capable of controlling 1 bipolar stepping motor.
・ PWM controlled constant-current drive.
・ Allows full, half(a)(b), quarter, 1/8, 1/16, and 1/32 step operation.
・ Low on-resistance (High + Low side=0.49Ω(typ.)) MOSFET output stage.
・ Selectable Mixed Decay mode
・ High voltage and current (For specification, please refer to absolute maximum ratings and operation ranges)
・ Built-in error detection (TSD/ISD) signal output function
・ Built-in error detection circuits (Thermal shutdown (TSD), over-current shutdown (ISD), and under voltage lock out
(UVLO))
・ Built-in VCC regulator for internal circuit use.
・ Chopping frequency of a motor can be customized by external resistance and capacitor.

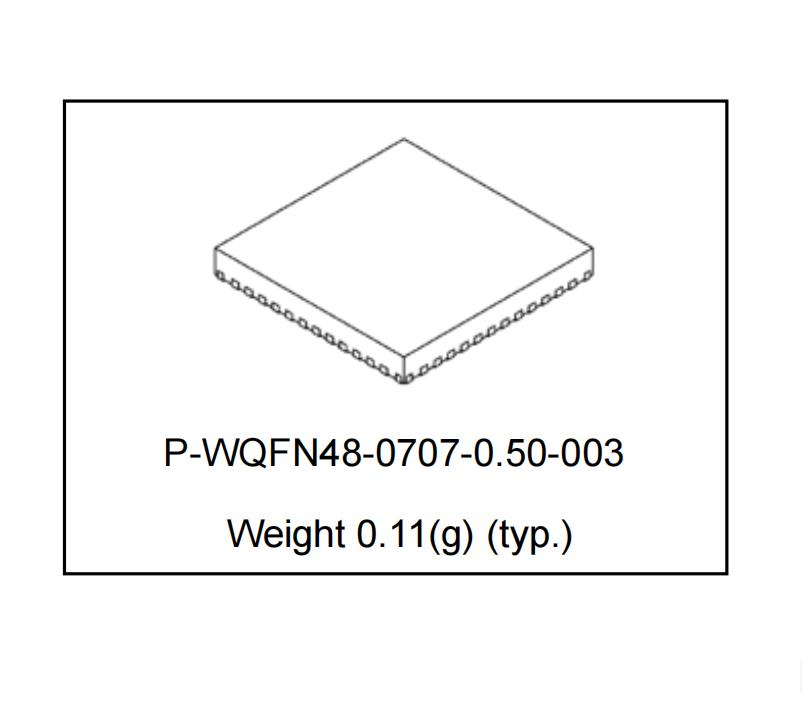

・ TB67S209FTG: P-WQFN48-0707-0.50-003
Note: Please be careful about thermal conditions during use.

Click on the number to view the product specification TB67S209FTG
