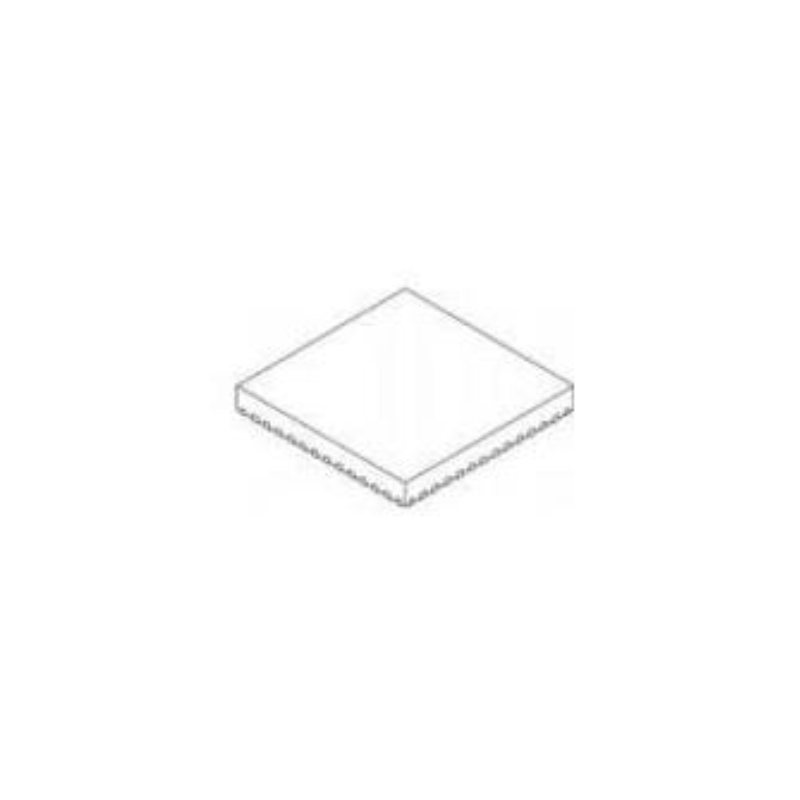

TB67S279FTG(O,EL)

SKU: TB67S279FTG(O,EL)
Manufacture : Toshiba
Mfr Part Number :TB67S279FTG
Product Category :In Stock For Purhcase Supplier Dual Full Bridge Motor Driver 24V 48-Pin VQFN EP Stepping motor driver IC
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TB67S279FTG(O,EL)
  • TB67S279FTG(O,EL)
1/1
  • TB67S279FTG(O,EL)
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TB67S279FTG

Datasheet

→View  TB67S279FTG Datasheet PDF

Function Full, Half, Quarter, 1/8, 1/16, 1/32 step resolution / Active Gain Control
/ RS less control / Advanced Dynamic Mixed Decay / Error Detect Flag Output
Application Scope Stepping motor drivers / Bipolar stepping motor drivers
Class BiCD 2-phase bipolar stepping motor driver
Number of drive motors (stepping motor) 1
RoHS Compatible Product(s) (#) Available
Toshiba Package Name P-VQFN48-0707-0.50-004
Pins 48
Mounting Surface Mount
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8542.39.00.01
Automotive No
PPAP No
Type Motor Driver
Motor Type Stepper Motor
Step Modes
1, 1/2, 1/4, 1/8, 1/16, 1/32
Control Interface PWM
Output Configuration Dual Full Bridge
Output Voltage (V) 50(Max)
Maximum Output Current (A) 2
Minimum Operating Supply Voltage (V) 10
Operating Supply Voltage (V) 10 to 47
Typical Operating Supply Voltage (V) 24
Maximum Operating Supply Voltage (V) 47
Maximum Operating Current (mA) 8
Maximum Power Dissipation (mW) 1300
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 85
