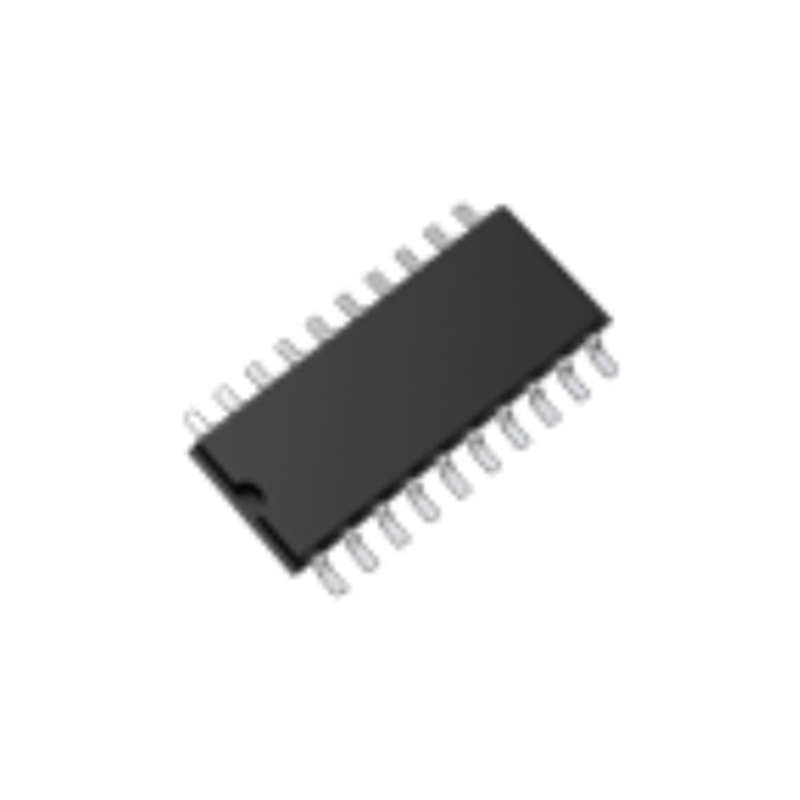

TC74VHC244F(EL,K,F

SKU: TC74VHC244F(EL,K,F
Manufacture : Toshiba
Mfr Part Number :TC74VHC244F
Product Category : CMOS logic IC series
Description : Buffer/Transceiver
0.0 (0 Reviews)
0 Sold
$0.00 $0.53
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • TC74VHC244F(EL,K,F
  • TC74VHC244F(EL,K,F
1/1
  • TC74VHC244F(EL,K,F
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture  Toshiba
Function 1 Buffer/Transceiver
Function 2 Buffer
Input type Input-Tolerant
Output type 3-State-Output
Number of Circuits 8
RoHS Compatible Product(s) (#) Available
Toshiba Package Name → SOP20
Package Image → View
Pins 20
Mounting Surface Mount
Width×Length×Height (mm) 13.3×7.8×1.5
Package Dimensions →View
Land pattern dimensions →View
CAD data (Symbol, Footprint and 3D model) →UltraLibrarian Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Logic Family VHC
Logic Function Buffer/Line Driver
Number of Elements per Chip 2
Number of Channels per Chip 8
Number of Inputs per Chip 8
Number of Input Enables per Chip 0
Number of Outputs per Chip 8
Number of Output Enables per Chip 2 Low
Bus Hold No
Polarity Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns) 7.5@5V|11.9@3.3V
Absolute Propagation Delay Time (ns) 16
Process Technology CMOS
Input Signal Type Single-Ended
Output Type 3-State
Maximum Low Level Output Current (mA) 8
Maximum High Level Output Current (mA) -8
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 5|3.3|2.5
Maximum Operating Supply Voltage (V)
5.5
Maximum Quiescent Current (uA) 4
Propagation Delay Test Condition (pF) 50
Maximum Power Dissipation (mW) 180
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Lead Shape Gull-wing
