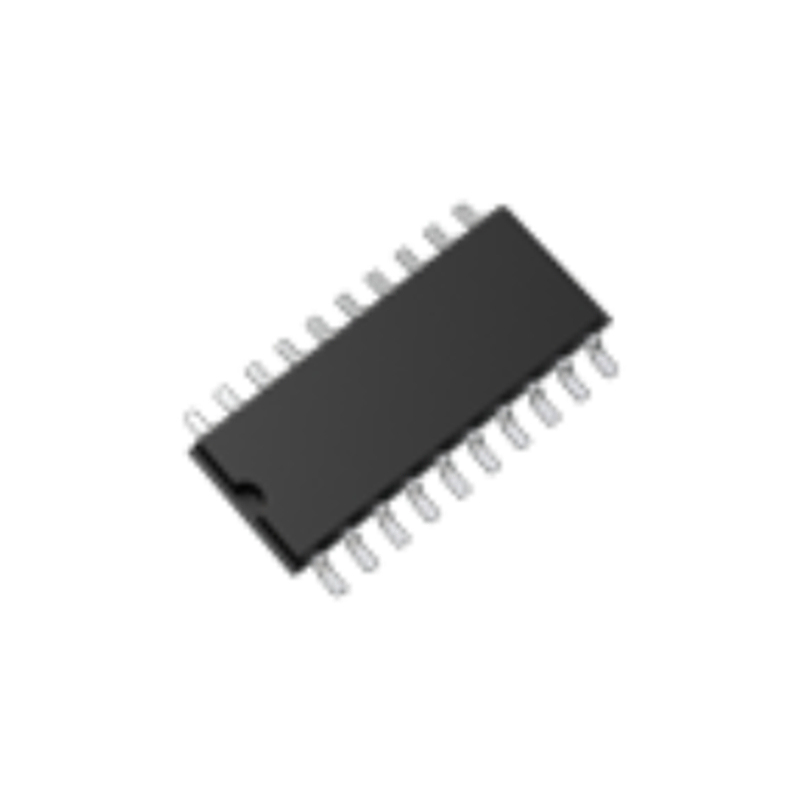

TC74VHC273F(EL,K,F

SKU: TC74VHC244F(EL,K,F
Manufacture : Toshiba
Mfr Part Number :TC74VHC273F
Product Category : CMOS logic IC series
Description : Flip-Flop/Latch/Register
0.0 (0 Reviews)
0 Sold
$0.00 $0.43
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • TC74VHC273F(EL,K,F
  • TC74VHC273F(EL,K,F
1/1
  • TC74VHC273F(EL,K,F
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture  Toshiba
Function 1 Flip-Flop/Latch/Register
Function 2 D-Type Flip-Flop
Input type Input-Tolerant
Number of Circuits 8
RoHS Compatible Product(s) (#) Available
Toshiba Package Name → SOP20
Package Image → View
Pins 20
Mounting Surface Mount
Width×Length×Height (mm) 13.3×7.8×1.5
Package Dimensions →View
Land pattern dimensions →View
CAD data (Symbol, Footprint and 3D model) →UltraLibrarian Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Logic Family VHC
Logic Function D-Type Bus Interface
Number of Channels per Chip 8
Number of Elements per Chip 1
Number of Element Inputs 8
Number of Element Outputs 8
Bus Hold No
Set/Reset Master Reset
Polarity Non-Inverting
Triggering Type Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns) 11@5V|17.1@3.3V
Absolute Propagation Delay Time (ns) 19.5
Process Technology CMOS
Input Signal Type Single-Ended
Maximum Low Level Output Current (mA) 8
Maximum High Level Output Current (mA) -8
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 5|3.3|2.5
Maximum Operating Supply Voltage (V) 5.5
Maximum Quiescent Current (mA) 0.004
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Standard Package Name SOP
Supplier Package SOP
PCB changed 20
Lead Shape Gull-wing
