| Product Attribute | Attribute Value |
| Manufacture | TOSHIBA |
| Function | Full, Half, Quarter step resolution / Phase inputs / PWM chopper type / Power-save mode / Power-on reset circuit |
| Application Scope | Bipolar stepping motor drivers |
| Class | 2-phase stepping motor driver |
| Number of drive motors (brush moter) | 4 |
| Number of drive motors (stepping motor) | 2 |
| RoHS Compatible Product(s) (#) | Available |
| Toshiba Package Name | →VIEW QFN48-P-0707-0.50 |

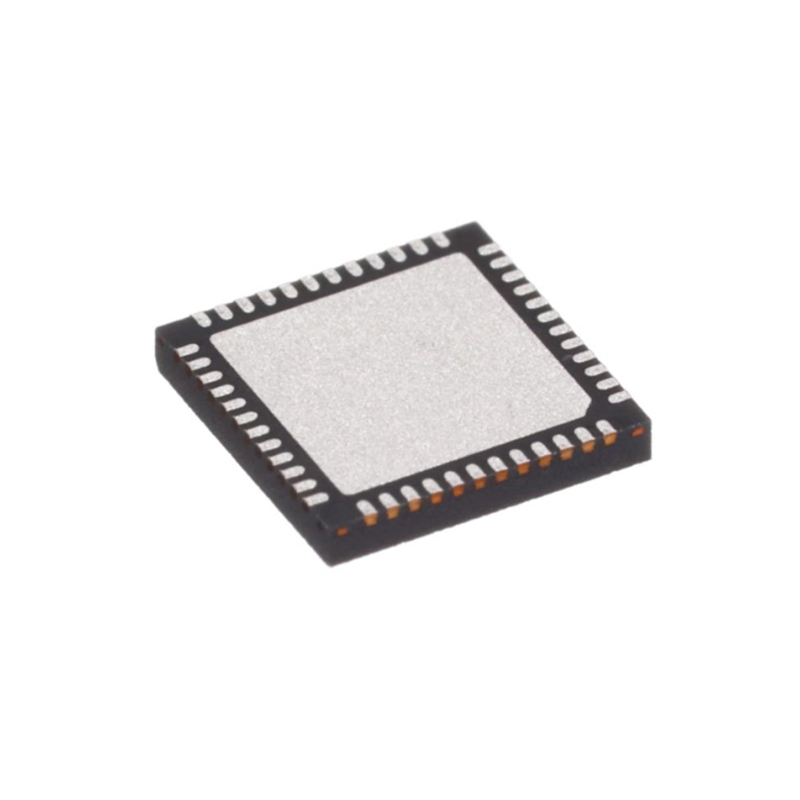

| Package Image |  |
| Pins | 48 |
| Mounting | Surface Mount |

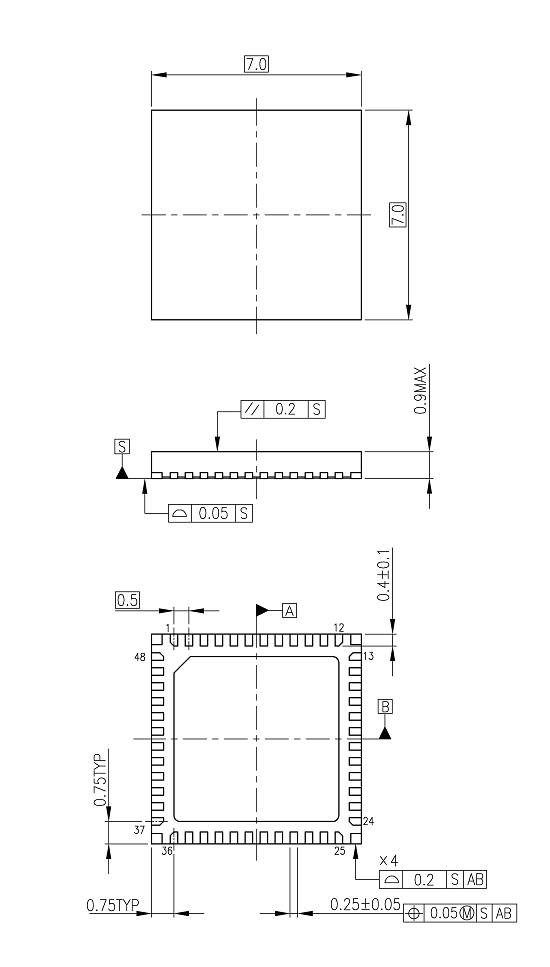

| Package Dimensions |  |

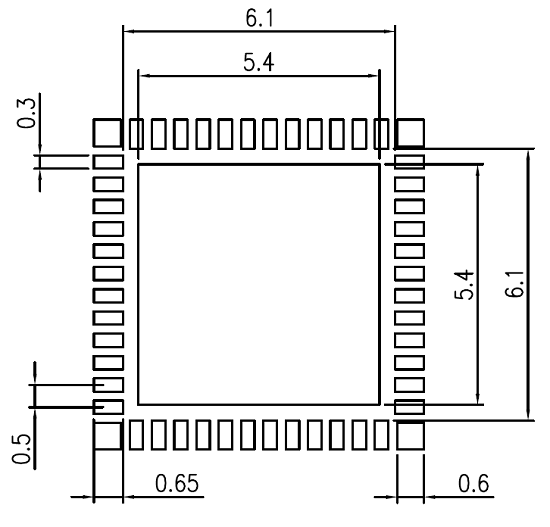

| Land pattern dimensions |  |
All products are brand new and original.
The quantity of electronic component products varies greatly, please confirm the quantity of products in customer service before purchasing.
Products in stock are shipped within 3 business days.
Futures products are shipped according to the actual arrival situation.
Usually we do not cover shipping costs.
The product is of high value and we usually send FedEx as the shipping method. If you have other courier companies you can let us know, we can use the express method you specify.
