TC78S122FTG(Z,EL)

SKU: TC78S122FTG(Z,EL)(O,EL)
Manufacture : Toshiba
Mfr Part Number :TC78S122FTG
Product Category :In Stock For Purhcase SupplierMotor / Motion / Ignition Controllers & Drivers Stepping Motor Driver IC
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TC78S122FTG(Z,EL)
  • TC78S122FTG(Z,EL)
1/1
  • TC78S122FTG(Z,EL)
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TC78S122FTG

Datasheet

→View  TC78S122FTG  Datasheet PDF

Function Full, Half, Quarter step resolution / PWM constant current drive / Clock-in type
/ Power-save mode / Power-on reset circuit
Application Scope Bipolar stepping motor drivers
Class 2-phase stepping motor driver
Number of drive motors (brush moter) 4
Number of drive motors (stepping motor) 2
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View  QFN48-P-0707-0.50

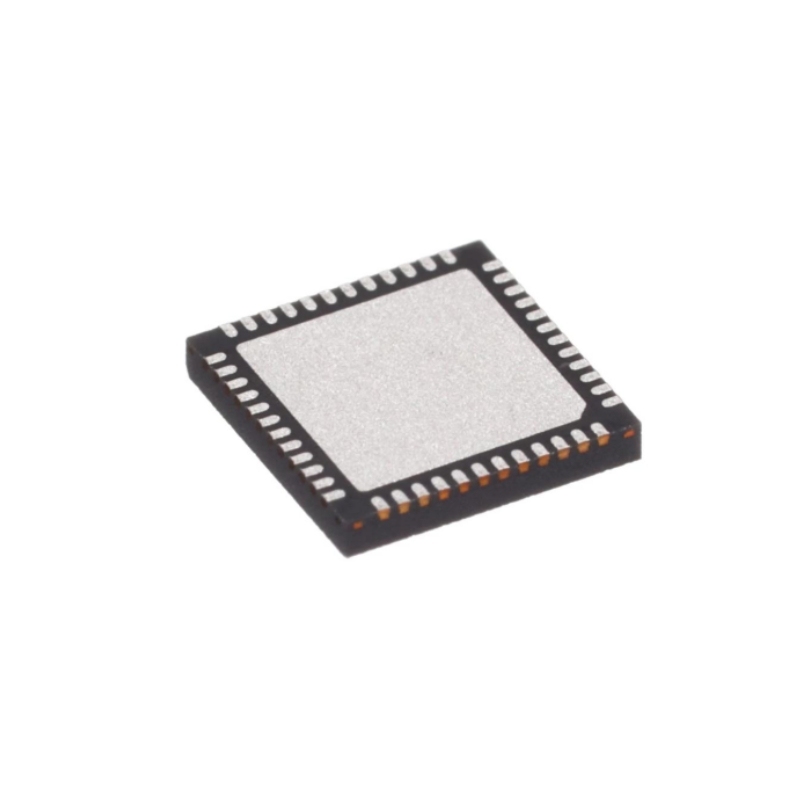

Package Image
Pins 48
Mounting Surface Mount

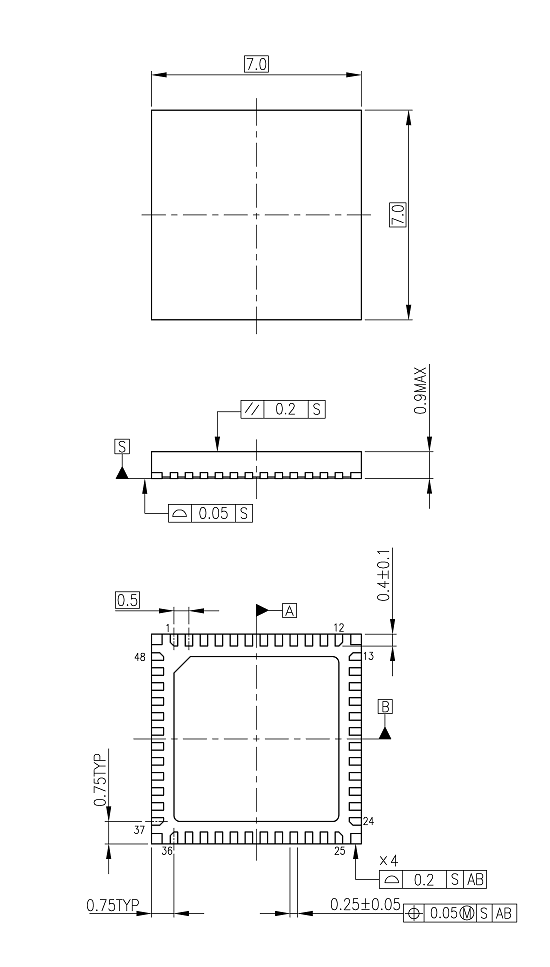

Package Dimensions

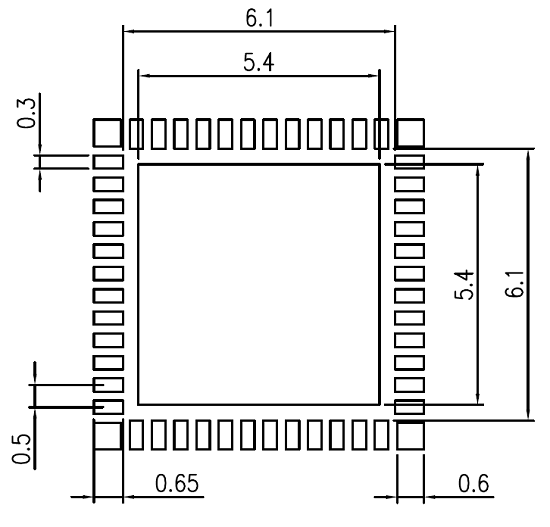

Land pattern dimensions
Operating Supply Voltage 5 V
Output Current 2 A
Operating Supply Current 8 mA
Minimum Operating Temperature - 20 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case QFN-48
Load Voltage Rating 24 V
Operating Frequency 100 kHz
Output Voltage 40 V
