• TC7PZ07FU,LJ(CB
1/1
  • TC7PZ07FU,LJ(CB

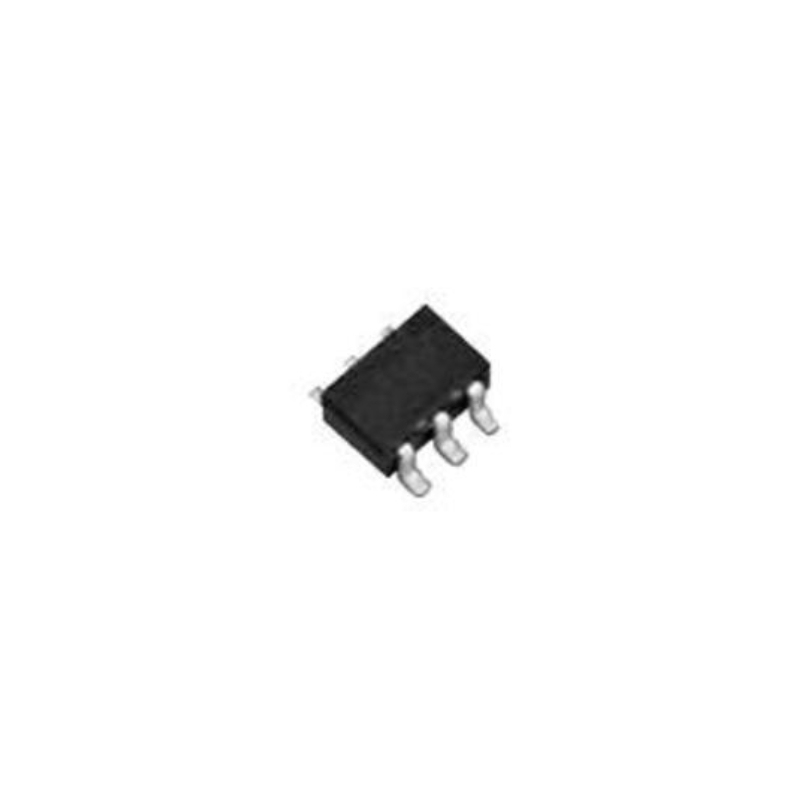

TC7PZ07FU,LJ(CB

SKU: TC7PZ05FU
Manufacture : Toshiba
Mfr Part Number :TC7PZ07FU
Product Category :In Stock For Purhcase Inverter 2-Element CMOS 6-Pin US T/R L-MOS SHS series (TC74LCX-equivalent)
0.0 (0 Reviews)
0 Sold
$0.00 $0.38
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TC7PZ07FU,LJ(CB
  • TC7PZ07FU,LJ(CB
1/1
  • TC7PZ07FU,LJ(CB
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TC7PZ07FU

Datasheet

→View  TC7PZ07FU Datasheet PDF

Function1 Buffer/Transceiver
Function2 Non-Inverter Buffer (Open Drain)
Input type Input-Tolerant
Output type Power-down-Protection
Number of Circuits 2
RoHS Compatible Product(s) (#)ge Name Available
Toshiba Package Name →View SOT-363 (US6)
Package Image
JEITA SC-88
Package Code SOT-363
Pins 6
Mounting Surface Mount
Width×Length×Height (mm) 2.0×2.1×0.9

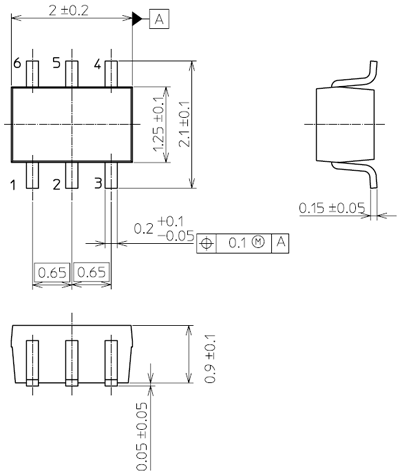

Package Dimensions
Land pattern dimensions
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8542.39.00.01
Automotive No
PPAP No
Logic Family LCX
Logic Function Inverter
Absolute Propagation Delay Time (ns) 9.5
Process Technology CMOS
Output Type Push-Pull
Maximum High Level Output Current (mA) -32
Minimum Operating Supply Voltage (V) 1.65
Typical Operating Supply Voltage (V) 1.8|2.5|3.3
Maximum Operating Supply Voltage (V) 5.5
Propagation Delay Test Condition (pF) 50
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
