TC7SZ14AFS,L3J(T

SKU: TC7SZ14AFS,L3J(T
Manufacture : TOSHIBA
Mfr Part Number :TC7SZ14AFS
Product Category :In Stock For Purchase Supplier L-MOS SHS series (TC74LCX-equivalent) Inverter Schmitt Trigger 1-Element CMOS 5-Pin fSV T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TC7SZ14AFS,L3J(T
  • TC7SZ14AFS,L3J(T
1/1
  • TC7SZ14AFS,L3J(T
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture

TOSHIBA

Mfr Part Number

TC7SZ14AFS,L3J(T

Datasheet

→View TC7SZ14AFS Datasheet PDF

Function1
Inverter
Function2 Schmitt Inverter
Input type Input-Tolerant
Number of Circuits 1
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View  SOT-953 (fSV)
Package Image
Package Code SOT-953
Pins 5
Mounting Surface Mount
Width×Length×Height (mm) 1.0×1.0×0.48

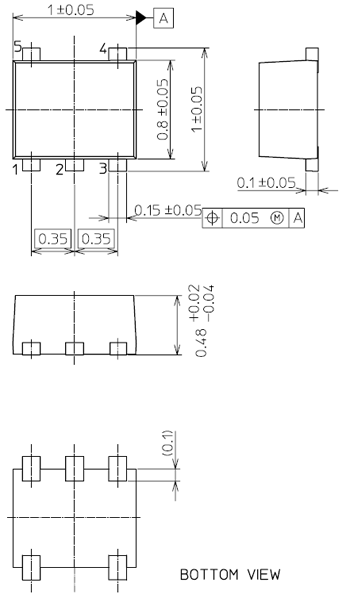

Package Dimensions
Land pattern dimensions
CAD data
(Symbol, Footprint and 3D model)
→View Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Logic Family LCX
Logic Function Inverter Schmitt Trigger
Maximum Propagation Delay Time @ Maximum CL (ns) 7.2@3.3V|5.9@5V
Absolute Propagation Delay Time (ns) 15.6
Process Technology CMOS
Output Type Schmitt Trigger
Maximum Low Level Output Current (mA) 32
Maximum High Level Output Current (mA) -32
Minimum Operating Supply Voltage (V) 1.65
Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
Maximum Operating Supply Voltage (V) 5.5
Maximum Quiescent Current (uA) 1
Propagation Delay Test Condition (pF) 50
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
