SSM3J327R,LF(B

SKU: SSM3J327R,LF(B
Manufacture : TOSHIBA
Mfr Part Number :SSM3J327R
Product Category :In Stock For Purchase Supplier Small Low ON resistance MOSFETs P-CH Si 20V 3.9A 3-Pin SOT-23F T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • SSM3J327R,LF(B
  • SSM3J327R,LF(B
1/1
  • SSM3J327R,LF(B
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture

TOSHIBA

Mfr Part Number

SSM3J327R,LF(B

Datasheet

→View SSM3J327R Datasheet PDF

Application Scope
Power Management Switches
Polarity P-ch
Generation U-MOSⅥ
Internal Connection Single
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View SOT-23F
Package Image
Pins 3
Mounting Surface Mount
Width×Length×Height (mm) 2.9×2.4×0.8

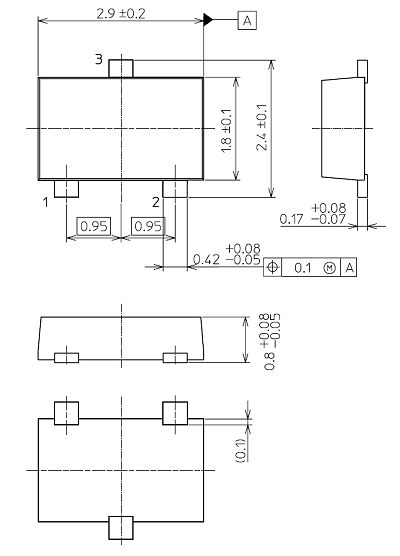

Package Dimensions
Land pattern dimensions
CAD data
(Symbol, Footprint and 3D model)
→View Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Product Category Small Signal
Material Si
Configuration Single
Channel Mode Enhancement
Maximum Drain Source Voltage (V) 20
Maximum Gate Source Voltage (V) ±8
Maximum Continuous Drain Current (A) 3.9
Maximum Drain Source Resistance (mOhm) 93@4.5V
Typical Gate Charge @ Vgs (nC) 4.6@4.5V
Typical Input Capacitance @ Vds (pF) 290@10V
Maximum Power Dissipation (mW) 2000
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
