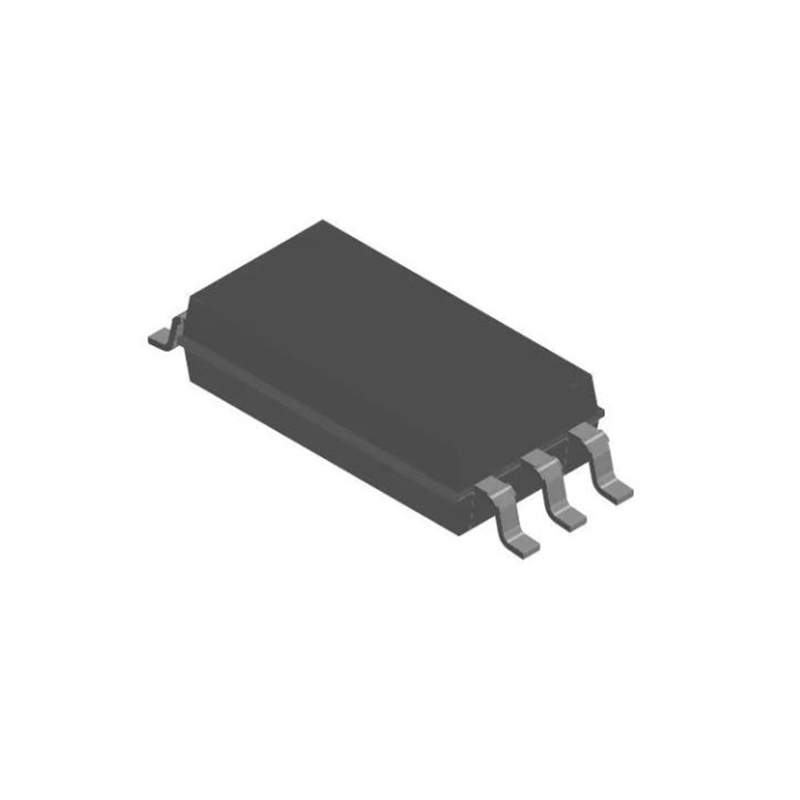

TLP2745(D4-TP,E(T

SKU: TLP2745(D4-TP,E(T

Manufacture : Toshiba
Mfr Part Number :TLP2745
Product Category : Photocoupler (photo-IC output)
Description : Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 6-Pin SO T/R

0.0 (0 Reviews)

0 Sold

$0.86

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Feature	2.3mm low-profile package / Creepage and clearance 8mm / High temperature 110 degC operation / High CMR
Application Scope	Communication interface / Measurement instrumentation / PLC
Function	High-speed / IPM driver
Number of Circuits	1
Output Interface	totem-pole(BUF)
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved:UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 / EN 60065 / EN 60950-1 Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)
Toshiba Package Name	→SO6L
Pins	6
Mounting	Surface Mount
Width×Length×Height (mm)	3.84×10×2.1
Package Image	→View
Package Dimensions	→View
Land pattern dimensions	→View
CAD data (Symbol, Footprint and 3D model)	→ Download from UltraLibrarian^® in your desired CAD format (Note)
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Gate Type	NAND
Number of Channels per Chip	1
Direction Type	Uni-Directional
Maximum Rise Time (us)	0.03
Typical Rise Time (us)	0.003
Maximum Fall Time (us)	0.03
Typical Fall Time (us)	0.003
Maximum Propagation Delay Time (ns)	120
Standard	CSA\|cUL\|UL
Input Type	DC
Output Type	Totem-Pole
Maximum Forward Current (mA)	15
Maximum Continuous Output Current (mA)	50
Minimum Forward Voltage (V)	1.35
Typical Forward Voltage (V)	1.55
Maximum Forward Voltage (V)	1.65
Maximum Reverse Voltage (V)	5(Min)
Maximum Power Dissipation (mW)	100
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	110
Packaging	Tape and Reel
Standard Package Name	SOP
Supplier Package	SO
PCB changed	6
Lead Shape	Gull-wing
