| Product Attribute | Attribute Value |
| Manufacture | Toshiba |
| Feature | VCEO 300V |
| Application Scope | Communication interface / PLC |
| Function | DARLINGTON |
| Number of Circuits | 1 |
| Input type | DC |
| RoHS Compatible Product(s) (#) | Available |
| Safety Standard | Approved:UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 / EN 60065 / EN 60950-1
*Download Online Certification of Safety Standard(UL 1577) |
| Toshiba Package Name | →View 4pin MFSOP6 |

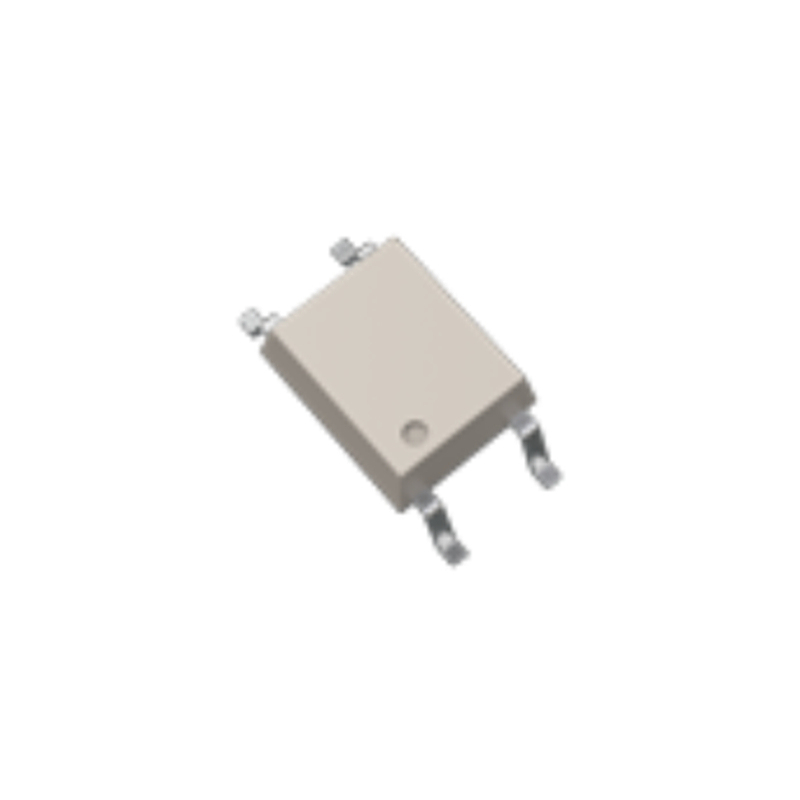

| Package Image |  |
| Pins | 4 |
| Mounting | Surface Mount |
| Width×Length×Height (mm) | 3.6×7.0×2.5 |
| Package Dimensions |  |
| Land pattern dimensions |  |
| Minimum Isolation Voltage (Vrms) | 2500 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Forward Voltage (V) | 1.3 |
| Maximum Collector-Emitter Voltage (V) | 300 |
| Maximum Current Transfer Ratio (%) | 4000(Typ) |
| Standard | cUL|BSI|EN|DIN|UL|VDE |
| Maximum Collector Current (mA) | 150 |
| Maximum Collector-Emitter Saturation Voltage (mV) | 1200 |
| Maximum Power Dissipation (mW) | 200 |
| Minimum Forward Voltage (V) | 1 |
| Maximum Reverse Voltage (V) | 5 |
| Typical Forward Voltage (V) | 1.15 |
| Maximum Forward Current (mA) | 50 |
| Packaging | Tape and Reel |
| Minimum Current Transfer Ratio (%) | 1000 |
| Current Transfer Ratio Test Current (mA) | 1 |
| Typical Rise Time (us) | 40 |
| Typical Fall Time (us) | 15 |
| Standard Package Name | MFSOP |
| Lead Shape | Gull-wing |
