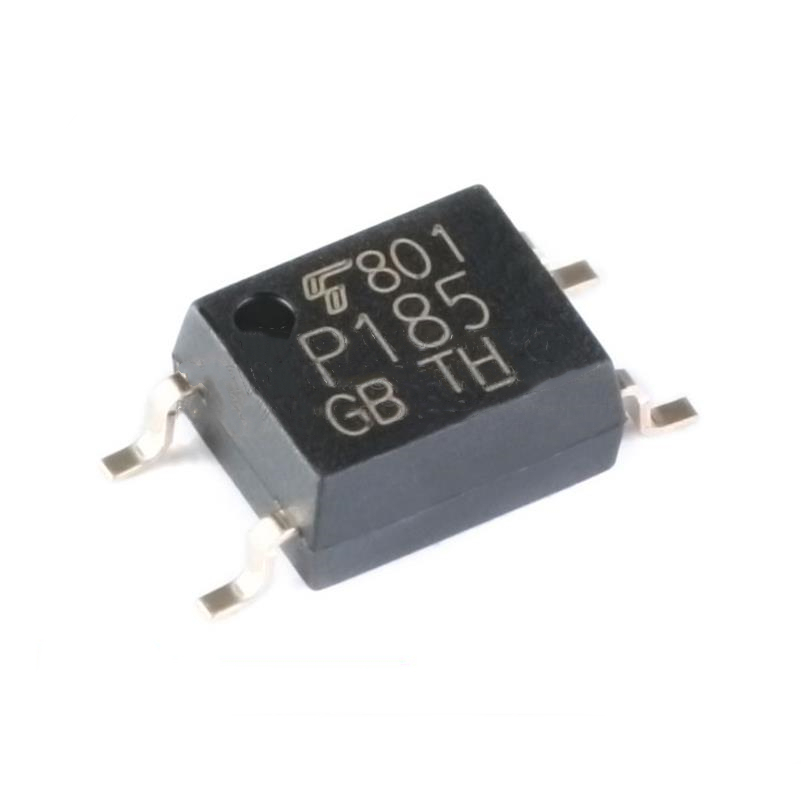

TLP185(GB-TPL,SE(T

SKU: TLP185(GB-TPL,SE(T
Manufacture : Toshiba
Mfr Part Number :TLP185
Product Category :In Stock For Purhcase Supplier Photocoupler (photo-IC output) DC-IN 1-CH Transistor DC-OUT 4-Pin SO T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TLP185(GB-TPL,SE(T
  • TLP185(GB-TPL,SE(T
1/1
  • TLP185(GB-TPL,SE(T
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TLP185(GB-TPL,SE(T

Datasheet

→View  TLP185 Datasheet PDF

Feature 2.3mm low-profile package
Application Scope Communication interface / PLC / Power supply
Function General-purpose
Number of Circuits 1
Input type DC
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View  4pin SO6
Package Image
Pins 4
Mounting Surface Mount
Width×Length×Height (mm) 3.7×7.0×2.1
Package Dimensions
Land pattern dimensions
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8541.49.80.00
Automotive No
PPAP No
Output Type DC
Input Type DC
Output Device Transistor
Minimum Isolation Voltage (Vrms) 3750
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 110
Maximum Forward Voltage (V) 1.4
Maximum Collector-Emitter Voltage (V) 80
Maximum Current Transfer Ratio (%) 600
Standard UL|cUL|CSA|BSI
Maximum Collector Current (mA) 50
Maximum Collector-Emitter Saturation Voltage (mV) 300
Maximum Power Dissipation (mW) 200
Minimum Forward Voltage (V) 1.1
Maximum Reverse Voltage (V) 5
Typical Forward Voltage (V) 1.25
Maximum Forward Current (mA) 20
Packaging Tape and Reel
Minimum Current Transfer Ratio (%) 100
Current Transfer Ratio Test Current (mA) 5
Lead Shape Gull-wing
