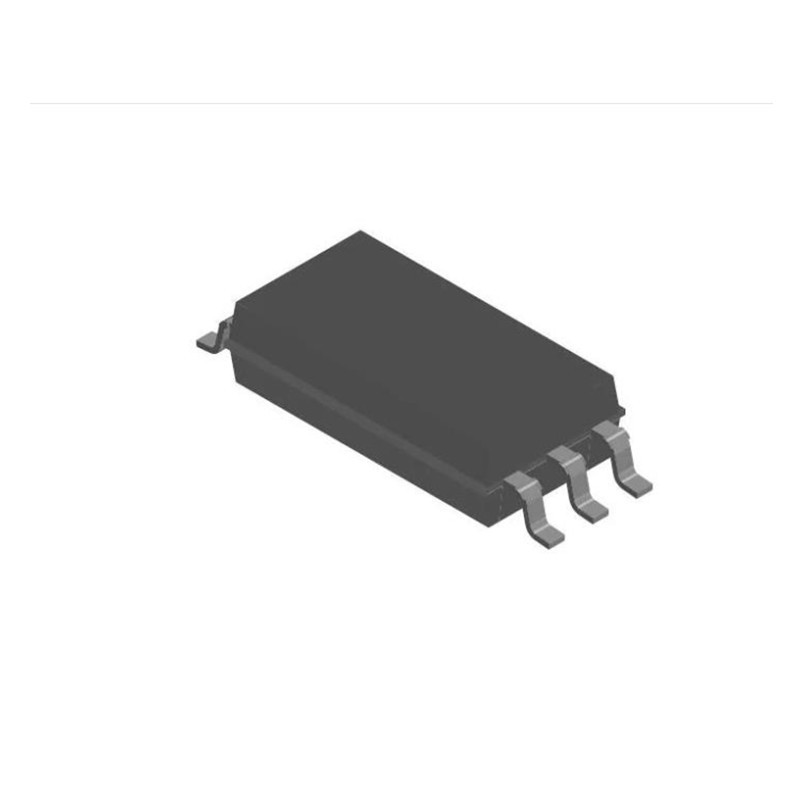

TLP2748(D4-TP,E(T

SKU: TLP2748(D4-TP,E(T

Manufacture : Toshiba
Mfr Part Number :TLP2748
Product Category : photo-IC output
Description : 2.3mm low-profile package / Creepage and clearance 8mm / High temperature 110 degC operation / High CMR

0.0 (0 Reviews)

0 Sold

~~$0.79~~ $0.75

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Feature	2.3mm low-profile package / Creepage and clearance 8mm / High temperature 110 degC operation / High CMR
Application Scope	Communication interface / Measurement instrumentation / PLC
Function	High-speed / IPM driver
Number of Circuits	1
Output Interface	totem-pole(INV)
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 / EN 60065 / EN 60950-1 →View Download Online Certification of Safety Standard(UL 1577) →View Download Online Certification of Safety Standard(cUL)
Toshiba Package Name	→SO6L
Package Image	→ View
Pins	6
Mounting	Surface Mount
Width×Length×Height(mm)	3.84×10×2.1
Package Dimensions	→View
Land pattern dimensions	→View
CAD data(Symbol, Footprint and 3D model)	→View Download from UltraLibrarian^® in your desired CAD format (Note)
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Gate Type	NAND Schmitt
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	5000
Maximum Rise Time (us)	0.03
Typical Rise Time (us)	0.003
Maximum Fall Time (us)	0.03
Typical Fall Time (us)	0.003
Standard	UL\|cUL\|CSA
Input Type	DC
Output Type	Totem-Pole
Maximum Forward Current (mA)	15
Maximum Continuous Output Current (mA)	2.5\|3.3\|5
Maximum Operating Supply Voltage (V)	50
Minimum Forward Voltage (V)	1.35
Typical Forward Voltage (V)	1.55
Maximum Forward Voltage (V)	1.65
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	100
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	110
Packaging	Tape and Reel
