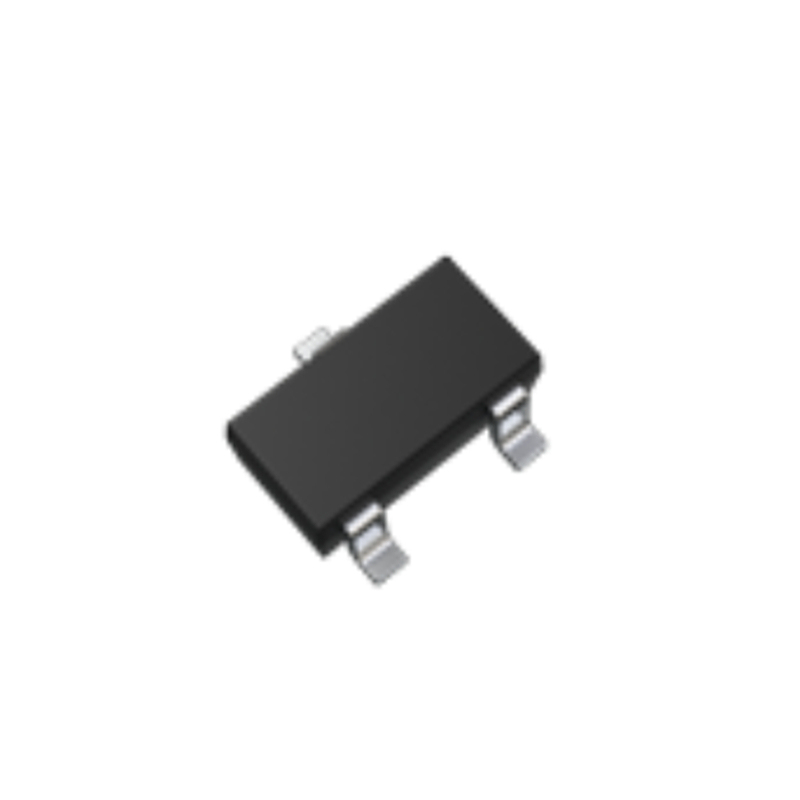

2SC2712-Y,LF(T

SKU: 2SC2712-Y,LF(T

Manufacture : Toshiba
Mfr Part Number :2SC2712-Y
Product Category : Semiconductors-Discretes
Description : Bipolar Transistors - BJT Transistor Lo Freq 0.15A 50V

0.0 (0 Reviews)

0 Sold

~~$0.28~~ $0.25

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Application Scope	General-purpose
Polarity	NPN
Complementary Product	2SA1162
Comments	Rank is specified by hFE range.
AEC-Q101	*Qualified()**
RoHS Compatible Product(s) (#)	Available
Toshiba Package Name	→ SOT-346 (S-Mini)
Package Image	→ View
JEITA	SC-59
JEDEC	SOT-346
Pins	3
Mounting	Surface Mount
Width×Length×Height(mm)	2.9×2.5×1.1
Package Dimensions	→View
Land pattern dimensions	→View
CAD data (Symbol, Footprint and 3D model)	→View Download from UltraLibrarian^® in your desired CAD format (Note)
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	NPN
Product Category	Bipolar Small Signal
Material	Si
Configuration	Single
Maximum Collector Base Voltage (V)	60
Maximum Collector-Emitter Voltage (V)	50
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	150
Maximum Collector-Emitter Saturation Voltage (V)	0.25@10mA@100mA
Maximum DC Collector Current (A)	0.15
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	120@2mA@6V
Maximum Power Dissipation (mW)	200
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150
Packaging	Tape and Reel
Supplier Package	S-Mini
Pin Count	3
Standard Package Name	S-MINI
Lead Shape	Gull-wing
