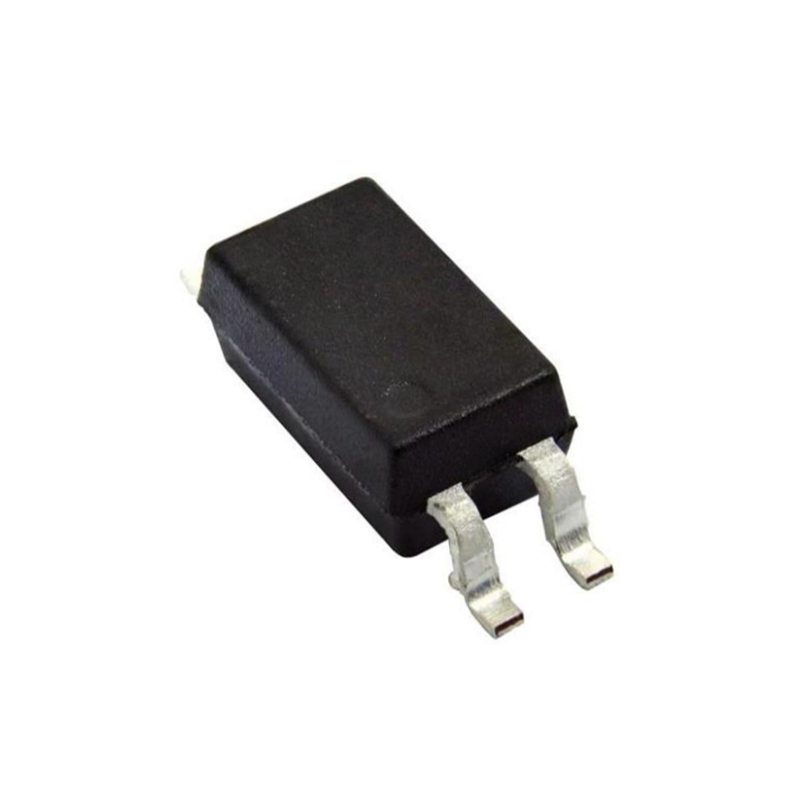

TLP291

SKU: TLP291

Manufacture : Toshiba
Mfr Part Number :TLP291
Product Category : phototransistor output
Description : Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SO

0.0 (0 Reviews)

0 Sold

~~$0.52~~ $0.52

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Feature	2.3mm low-profile package
Application Scope	Communication interface / Power supply / PLC
Function	General-purpose
Number of Circuits	1
Input type	DC
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved:UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 / EN 60065 / EN 60950-1 / CQC (China Quality Certification center) Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)
Toshiba Package Name	→SO4
Package Image	→View
Pins	4
Mounting	Surface Mount
Width×Length×Height (mm)	3.7×7.0×2.1
Package Dimensions	→View
Land pattern dimensions	→View
EU RoHS	Compliant
ECCN (US)	5A991
Part Status	Active
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	3750
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	110
Maximum Forward Voltage (V)	1.4
Maximum Collector-Emitter Voltage (V)	80
Maximum Current Transfer Ratio (%)	400
Standard	VDE\|BSI\|CSA\|cUL\|DIN\|EN\|SEMKO\|UL
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	200(Typ)
Maximum Power Dissipation (mW)	200
Minimum Forward Voltage (V)	1.1
Maximum Reverse Voltage (V)	5
Typical Forward Voltage (V)	1.25
Maximum Forward Current (mA)	50
Minimum Current Transfer Ratio (%)	200
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	4
Typical Fall Time (us)	7
Standard Package Name	SOP
Pin Count	4
Supplier Package	SO
Mounting	Surface Mount
PCB changed	4
Lead Shape	Gull-wing
