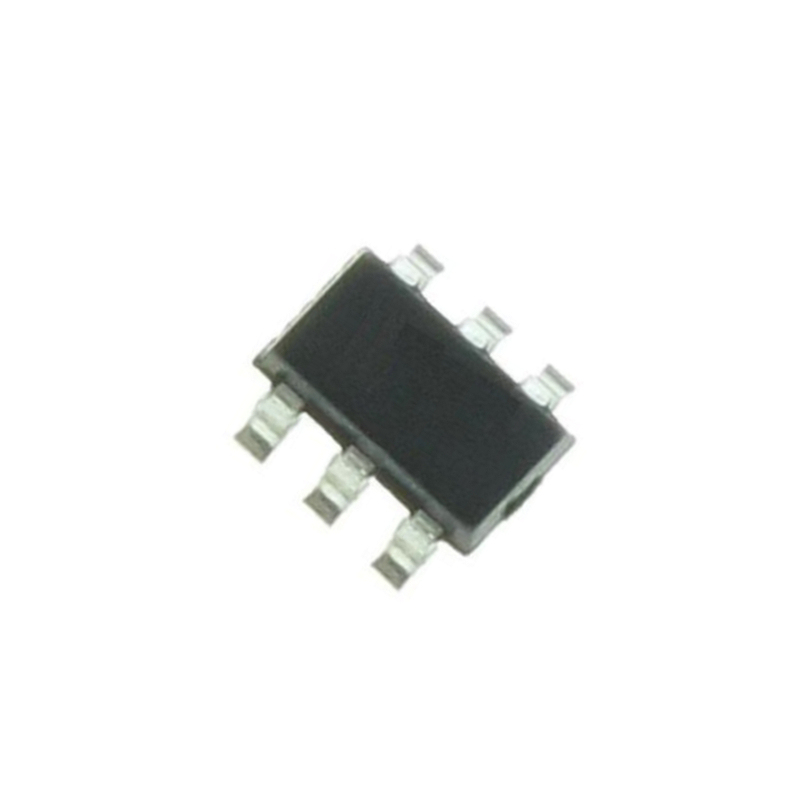

TLP3107(TP,F(O

SKU: TLP3107(TP,F(O

Manufacture : Toshiba
Mfr Part Number :TLP3107
Product Category : MOSFET output, 1-form-a
Description : Solid State Relay 25mA 1.48V DC-IN AC/DC-OUT 6-Pin SOP T/R

0.0 (0 Reviews)

0 Sold

$4.90

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Feature	High capacity
Application Scope	Measurement instrumentation / Power line control
Number of Circuits	1
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved:UL 1577 / cUL (CSA Component Acceptance Service No. 5A) Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)
Toshiba Package Name	→ 2.54SOP6
Package Image	→View
Pins	6
Mounting	Surface Mount
Width×Length×Height (mm)	6.3×7.0×2.1
Package Dimensions	→View
Land pattern dimensions	→View
CAD data (Symbol, Footprint and 3D model)	→View Download from UltraLibrarian^® in your desired CAD format (Note)
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.18
Maximum Input Voltage (V)	1.48
Maximum Input Current (mA)	25
Output Device	MOSFET
Output Type	AC\|DC
I/O Isolation Voltage (V)	1500(RMS)
Circuit Arrangement	1 Form A
Minimum Operating Temperature (°C)	-20
Maximum Operating Temperature (°C)	65
Standard Package Name	SOP
Supplier Package	SOP
Pin Count	6
Mounting	Surface Mount
Package Height	2.1(Max)
Lead Shape	Gull-wing
