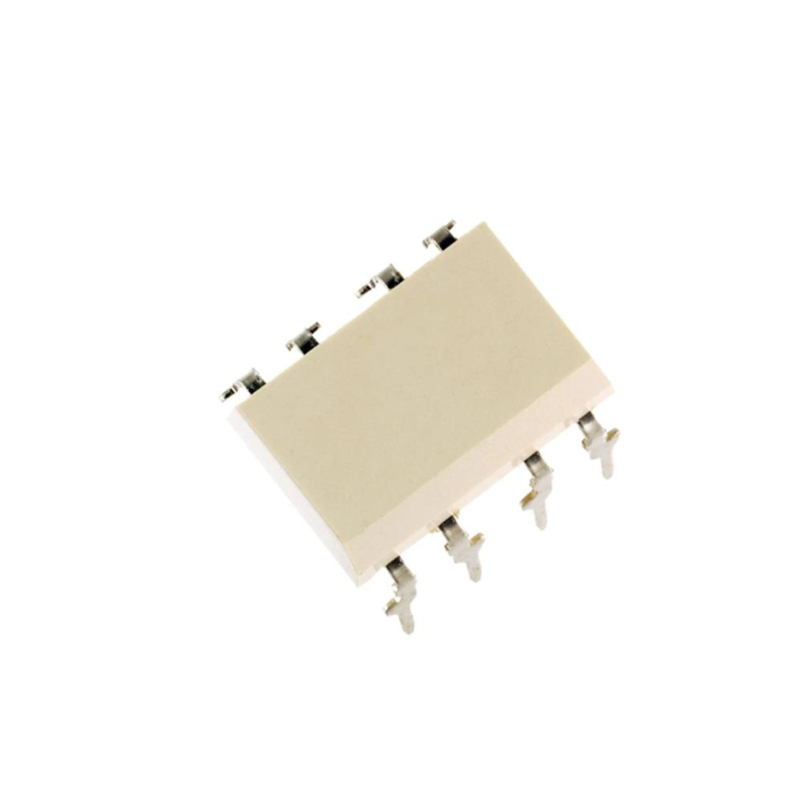

TLP352(TP1,F)

SKU: TLP352(TP1,F)
Manufacture : TOSHIBA
Mfr Part Number :TLP352
Product Category :In Stock For Purchase Supplier Photocoupler (photo-IC output) Optocoupler Drive Totem-Pole 1-CH 30V 1000V 8-Pin PDIP SMD T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TLP352(TP1,F)
  • TLP352(TP1,F)
1/1
  • TLP352(TP1,F)
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture

TOSHIBA

Mfr Part Number

TLP352(TP1,F)

Datasheet

→View TLP352 Datasheet PDF

Feature
2.5A peak current / Low skew / High temperature 125 degC operation
Application Scope Inverter / PV inverter / Induction cooktop
Function IGBT driver
Number of Circuits 1
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View  DIP8
Package Image
Pins 8
Mounting Through Hole/Surface Mount
Width×Length×Height (mm) 9.66×7.62×3.65
Package Dimensions
CAD data
(Symbol, Footprint and 3D model)
→View Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99EAR99
Part Status Active
HTS 8542330001
Automotive No
PPAP No
Minimum Isolation Voltage (Vrms) 3750
Minimum Common Mode Rejection (kV/us) 20
Maximum Rise Time (ns) 15(Typ)
Maximum Fall Time (ns) 8(Typ)
Maximum Propagation Delay Time (tPLH) (ns) 100
Maximum Propagation Delay Time (tPHL) (ns) 200
Maximum Pulse Width Distortion (ns) 50
Output Type Totem-Pole
Maximum Forward Current (mA) 20
Minimum Forward Voltage (V) 1.4
Maximum Forward Voltage (V) 1.7
Maximum Reverse Voltage (V) 5
Common Mode Voltage (V) 1000
Maximum Operating Supply Voltage (V) 30
Maximum Power Dissipation (mW) 260
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Lead Shape Gull-wing
