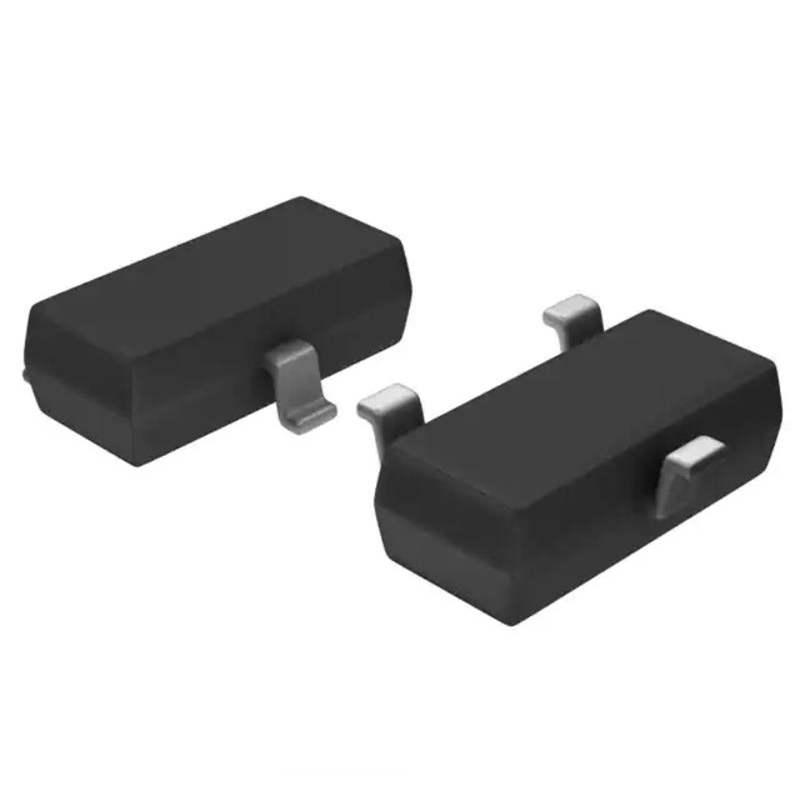

TMBT3904,LM(B

SKU: TMBT3904,LM(B
Manufacture : TOSHIBA
Mfr Part Number :TMBT3904
Product Category :In Stock For Purchase Supplier Trans GP BJT NPN 50V 0.15A 3-Pin SOT-23 T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.03
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TMBT3904,LM(B
  • TMBT3904,LM(B
1/1
  • TMBT3904,LM(B
  • Description
  • Please Read

Product Attribute          Attribute Value
Manufacture

TOSHIBA

Mfr Part Number

TMBT3904,LM(B

Datasheet

→View TMBT3904 Datasheet PDF

Polarity NPN
Complementary Product TMBT3906
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View SOT-23 (SOT23)
Package Image
JEDEC TO-236AB
Package Code SOT-23
Pins 3
Mounting Surface Mount
Width×Length×Height (mm) 2.9×2.4×0.9
Package Dimensions
Land pattern dimensions
CAD data
(Symbol, Footprint and 3D model)
→ViewDownload from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Type NPN
Product Category Bipolar Small Signal
Material Si
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 60
Maximum Collector-Emitter Voltage (V) 50
Maximum Emitter Base Voltage (V) 5
Maximum Base Emitter Saturation Voltage (V) 0.85@1mA@10mA|0.95@5mA@50mA
Maximum Collector-Emitter Saturation Voltage (V) 0.2@1mA@10mA|0.3@5mA@50mA
Maximum DC Collector Current (A) 0.15
Maximum Collector Cut-Off Current (nA) 100
Minimum DC Current Gain 60@0.1mA@1V|80@1mA@1V|100@10mA@1V|60@50mA@1V|30@100mA@1V
Maximum Power Dissipation (mW) 1000
Maximum Transition Frequency (MHz) 300(Min)
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Lead Shape Gull-wing
