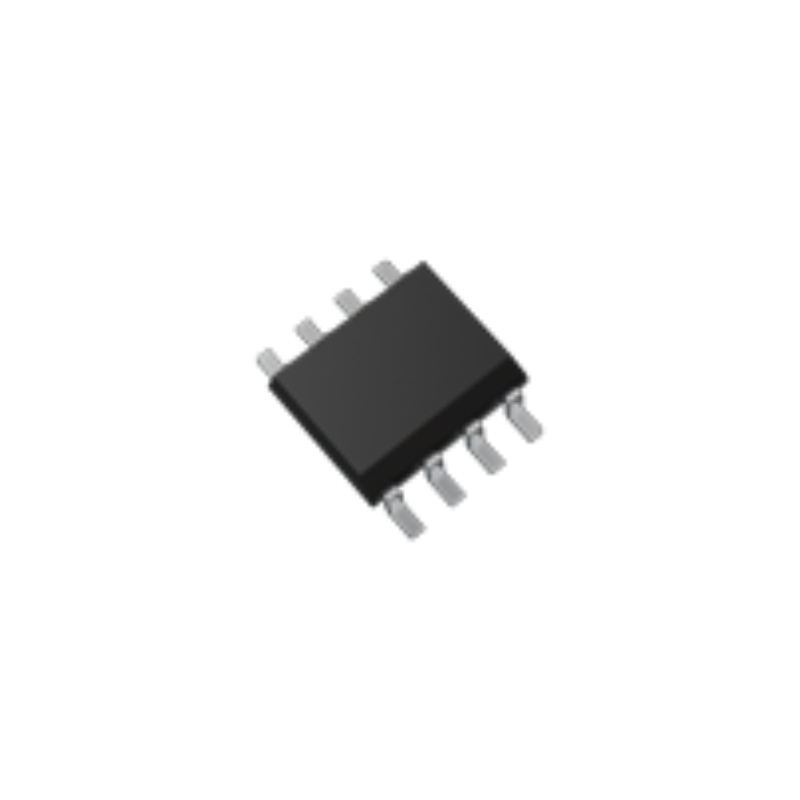

TPC8124(TE12L,V,M)

SKU: TPC8124(TE12L,V,M)
Manufacture : Toshiba
Mfr Part Number :TPC8124
Product Category :In Stock For Purhcase Supplier Trans MOSFET P-CH Si 40V 12A 8-Pin SOP T/R Power MOSFET (P-ch single)
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TPC8124(TE12L,V,M)
  • TPC8124(TE12L,V,M)
1/1
  • TPC8124(TE12L,V,M)
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TPC8124

Datasheet

→View  TPC8124 Datasheet PDF

Application Scope Lithium-Ion Secondary Batteries / Power Management Switches
Polarity P-ch
Generation U-MOSⅥ
Internal Connection Single
Toshiba Package Name →View  SOP-8
Package Image
Pins 8
Mounting Surface Mount
Width×Length×Height (mm) 4.9×6.0×1.5

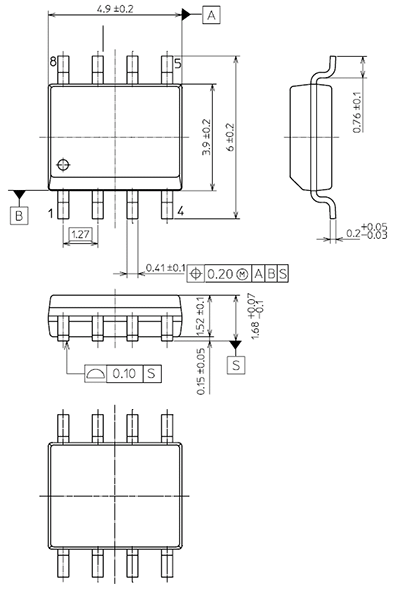

Package Dimensions
Land pattern dimensions
RoHS Compatible Product(s) (#) Available
EU RoHS Compliant
ECCN (US) EAR99
Part Status Obsolete
Automotive No
PPAP No
Product Category Power MOSFET
Material Si
Configuration Single Quad Drain Triple Source
Process Technology U-MOS VI
Channel Mode
Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 40
Maximum Gate Source Voltage (V) 20
Maximum Gate Threshold Voltage (V) 2
Maximum Continuous Drain Current (A) 12
Maximum Gate Source Leakage Current (nA) 100
Maximum IDSS (uA) 10
Maximum Drain Source Resistance (mOhm) 8@10V
Typical Gate Charge @ Vgs (nC) 104@10V
Typical Gate Charge @ 10V (nC) 104
Typical Input Capacitance @ Vds (pF) 4750@10V
Maximum Power Dissipation (mW) 1900
Typical Fall Time (ns) 110
Typical Rise Time (ns) 9
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
