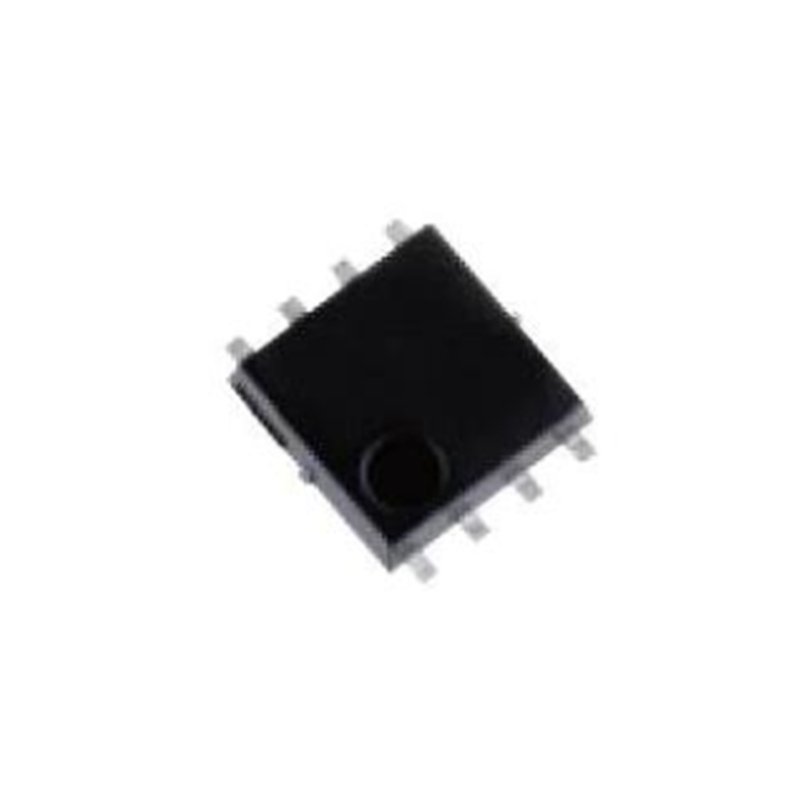

TPH1R403NL,L1Q(M

SKU: TPH1R403NL,L1Q(M

Manufacture : Toshiba
Mfr Part Number :TPH1R403NL
Product Category : Power MOSFET
Description : Trans MOSFET N-CH Si 30V 150A 8-Pin SOP Advance T/R

0.0 (0 Reviews)

0 Sold

$1.75

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Application Scope	High-Efficiency DC-DC Converters / Switching Voltage Regulators
Polarity	N-ch
Generation	U-MOSⅧ-H
Internal Connection	Single
RoHS Compatible Product(s) (#)	Available
Toshiba Package Name	→ View SOP Advance(N)
Package Image	→View
Pins	8
Mounting	Surface Mount
Width×Length×Height (mm)	4.9×6.1×1.0
Package Dimensions	→View
Land pattern dimensions	→View
EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Material	Si
Configuration	Single Quad Drain Triple Source
Process Technology	U-MOS VIII-H
Channel Mode	Enhancement
Channel Type	N
Number of Elements per Chip	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.3
Maximum Continuous Drain Current (A)	150
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (MOhm)	1.4@10V
Typical Gate Charge @ Vgs (nC)	46@10V\|20@4.5V
Typical Gate Charge @ 10V (nC)	46
Typical Input Capacitance @ Vds (pF)	3400@15V
Maximum Power Dissipation (mW)	2800
Typical Fall Time (ns)	8.9
Typical Rise Time (ns)	5.6
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150
Packaging	Tape and Reel
Supplier Package	SOP Advance
Pin Count	8
Standard Package Name	SOP
Mounting	Surface Mount
Package Height	0.95
Package Length	5
Package Width	5
PCB changed	8
