  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TPH5R60APL

Datasheet

→View  TPH5R60APL  Datasheet PDF

Application Scope High-Efficiency DC-DC Converters / Switching Voltage Regulators
/ Motor Drivers
Polarity N-ch
Generation U-MOSⅨ-H
Internal Connection Single
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View SOP Advance

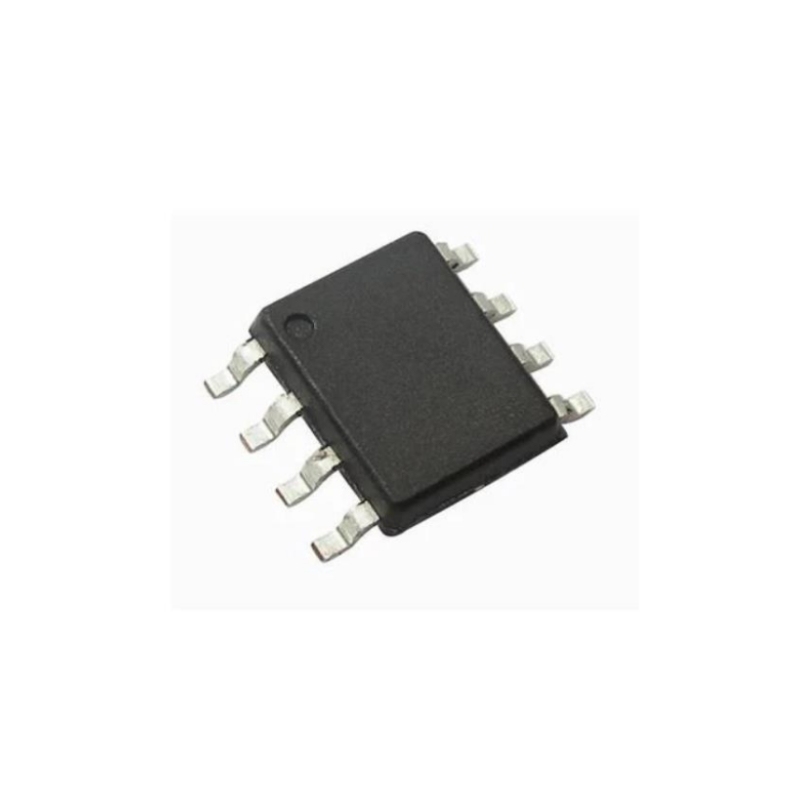

Package Image
Pins 8
Mounting Surface Mount
Width×Length×Height (mm) 5.0×6.0×0.95

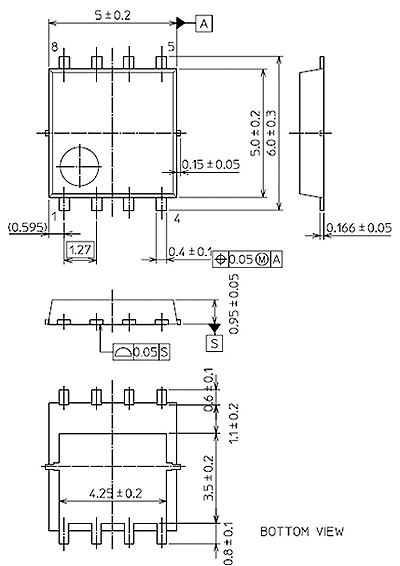

Package Dimensions
Land pattern dimensions
Technology Si
Mounting Style SMD/SMT
Package / Case
SOP-8
Vds - Drain-Source Breakdown Voltage 100 V
Id - Continuous Drain Current 110 A
Rds On - Drain-Source Resistance 5.6 mOhms
Vgs - Gate-Source Voltage - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage 1.5 V
Qg - Gate Charge 52 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 175 C
