TPN11003NL,LQ(S

SKU: TPN11003NL,LQ(S
Manufacture : Toshiba
Mfr Part Number :TPN11003NL
Product Category :In Stock For Purhcase Supplier Power MOSFET (N-ch single VDSS≤30V) Trans MOSFET N-CH Si 30V 31A 8-Pin TSON EP Advance T/R
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TPN11003NL,LQ(S
  • TPN11003NL,LQ(S
1/1
  • TPN11003NL,LQ(S
  • Description
  • Please Read
Product Attribute          Attribute Value
Manufacture

Toshiba

Mfr Part Number

TPN11003NL

Datasheet

→View TPN11003NL  Datasheet PDF

Application Scope Switching Voltage Regulators / DC-DC Converters
Polarity N-ch
Generation U-MOSⅧ-H
Internal Connection Single
RoHS Compatible Product(s) (#) Available
Toshiba Package Name →View TSON Advance
Package Image
Pins 8
Mounting Surface Mount
Width×Length×Height (mm) 3.3×3.3×0.85

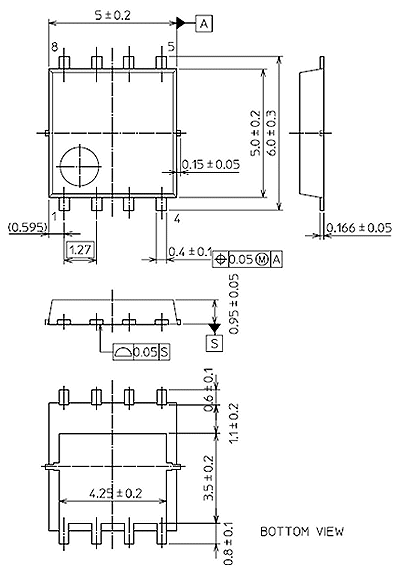

Package Dimensions
Land pattern dimensions
CAD data
(Symbol, Footprint and 3D model)
→ViewDownload from UltraLibrarian<sup>®</sup> in your desired CAD format (Note)  Download from UltraLibrarian® in your desired CAD format (Note)
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Product Category Power MOSFET
Material Si
Configuration Single Quad Drain Triple Source
Process Technology U-MOS VIII-H
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 30
Maximum Gate Source Voltage (V) ±20
Maximum Gate Threshold Voltage (V) 2.3
Maximum Continuous Drain Current (A) 31
Maximum Gate Source Leakage Current (nA) 100
Maximum IDSS (uA) 10
Maximum Drain Source Resistance (mOhm) 11@10V
Typical Gate Charge @ Vgs (nC) 3.3@4.5V|7.5@10V
Typical Gate Charge @ 10V (nC) 7.5
Typical Input Capacitance @ Vds (pF) 510@15V
Maximum Power Dissipation (mW) 19000
Typical Fall Time (ns) 1.9
Typical Rise Time (ns) 2.1
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
