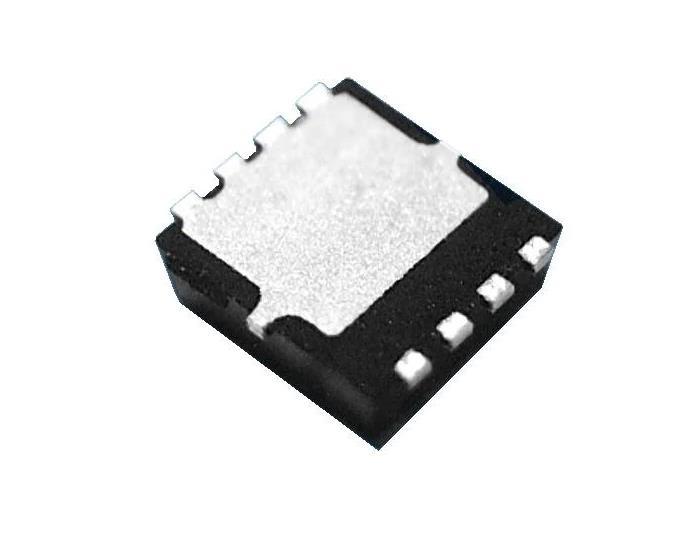

TPN2R304PL,L1Q(M

SKU: TPN2R304PL,L1Q(M

Manufacture : Toshiba
Mfr Part Number :TPN2R304PL
Product Category : MOSFET
Description : Trans MOSFET N-CH Si 40V 100A 8-Pin TSON EP Advance T/R

0.0 (0 Reviews)

0 Sold

$1.10

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture	Toshiba
Application Scope	High-Efficiency DC-DC Converters / Switching Voltage Regulators / Motor Drivers
Polarity	N-ch
Generation	U-MOSⅨ-H
Internal Connection	Single
RoHS Compatible Product(s) (#)	Available
Toshiba Package Name	→ TSON Advance
Package Image	→View
Pins	8
Mounting	Surface Mount
Width×Length×Height (mm)	3.3×3.3×0.85
Package Dimensions	→View
Land pattern dimensions	→View
CAD data (Symbol, Footprint and 3D model)	→ Download from UltraLibrarian^® in your desired CAD format (Note)
EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Material	Si
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per Chip	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	100
Maximum Drain Source Resistance (MOhm)	2.3@10V
Typical Gate Charge @ Vgs (nC)	19.4@4.5V\|41@10V
Typical Gate Charge @ 10V (nC)	41
Typical Input Capacitance @ Vds (pF)	2750@20V
Maximum Power Dissipation (mW)	2670
Typical Fall Time (ns)	12.2
Typical Rise Time (ns)	7.8
Minimum Operating Temperature (°C)	-55
Packaging	Tape and Reel
Supplier Package	TSON EP Advance
Pin Count	8
PCB changed	8
