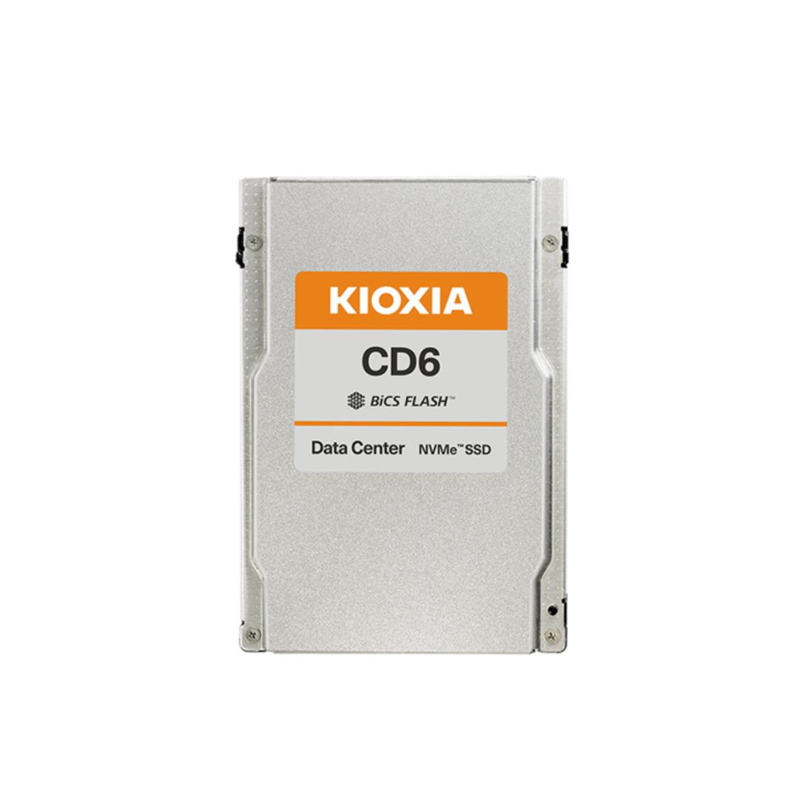

KIOXIA CD6-V Data Center - 3DWPD Mixed Use SSD 800GB , U.3 KCD61VUL800G

CD6-V Series Data Center SSD

Data Center NVMe™ Mixed-use SSD

The CD6-V Series is a mixed-use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe^® Gen4 x4 interface, the CD6-V Series SSDs deliver consistent performance up to 1M IOPS (random read) and 250 KIOPS (random write), with active power consumption of 13-19 W.
Featuring KIOXIA Corporation's 96-layer BiCS FLASHTM 3D TLC memory, CD6-V SSDs deliver 3DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.




Key Features	Key Applications
• PCIe® 4.0, NVMe™ 1.4 specification compliant	• Hyperscale
• Form factor: 2.5-inch, 15mm Z-height	• IoT and big data analytics
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC	• Online transaction processing (OLTP) (transactional and relational databases)
• SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes	• Virtualized environments
• Single-port design, optimized for data center class workloads	• Streaming media and content delivery networks
• 6th generation, two-die failure recovery and double parity protection
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Data security options: SIE, SED, FIPS 140-2[1, 2, 3, 4, 5]
• Six power mode settings







Documents

• →View  Product Brief (526KB)
• →View What is NVMe-oF™ Technology? (1.5MB)
• →View MySQL Performance Gains with PCIe® 4.0 vs. PCIe 3.0 SSDs (533KB)
• →View CM6 Series & CD6 Series SSDs Deliver Ultra-Fast PCIe® 4.0 Performance (491KB)
• →View What You Need To Know About PCIe® 4.0 NVMe™ SSDs FAQ (367KB)



• Product image may represent a design model.
• Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
• GT/s: Giga Transfers per second.
• A kibibyte (KiB) means 2^10, or 1,024 bytes.
• MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
• DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
• Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
• IOPS: Input Output Per Second (or the number of I/O operations per second).
• [1] The Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED), FIPS (Federal Information Processing Standards) optional models are available.
• [2] SIE option supports Crypto Erase, which is a standardized feature defined by NVM Express Inc.
• [3] SED supports TCG Opal and Ruby SSCs. It has a few unsupported TCG Opal features. For more details, please make inquiries through "Contact us" .
• [4] KIOXIA FIPS drives utilize a security module designed to comply with FIPS 140-2 Level 2 and FIPS 140-3 Level 2, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through "Contact us".
• [5] Optional security feature compliant drives are not available in all countries due to export and local regulations.
• PCIe is a registered trademark of PCI-SIG.
• NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
• Other company names, product names, and service names may be trademarks of their respective companies.
