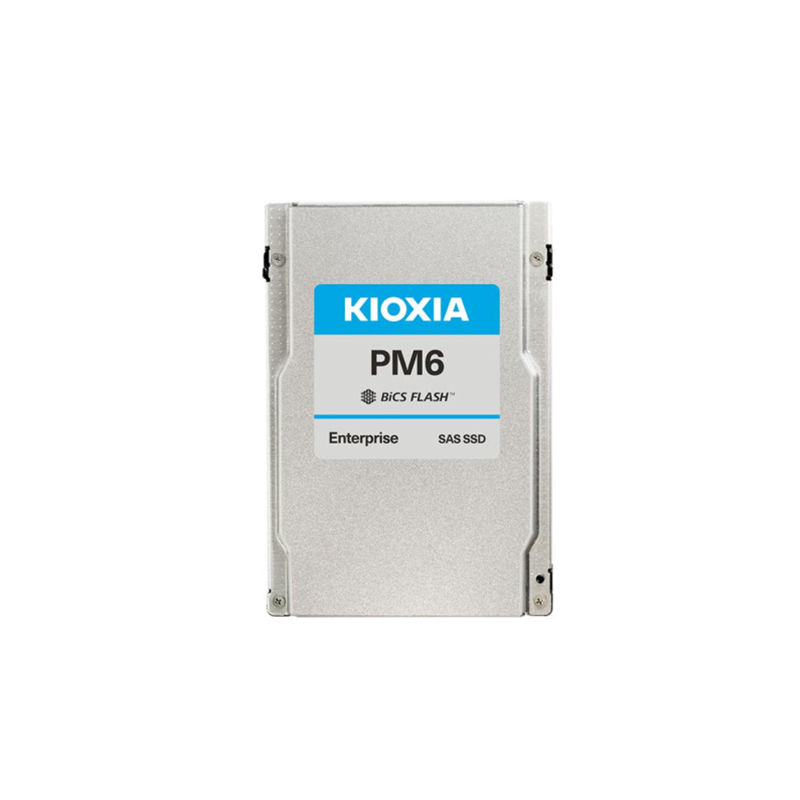

KIOXIA PM6-R Enterprise-1DWPD Read Intensive SSD 960GB, SAS KPM61RUG960G

PM6-R Series


PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA Corporation’s 96-layer BiCS FLASH^TM 3D flash memory, this 6th generation enterprise SAS SSD PM6-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.





Key Features	Key Applications
• 24G SAS interface with single/dual-port support	• Data warehousing
• Capacities from 960 GB to 30.72 TB	• Streaming media
• T10 Multi-Stream Write support	• Video on demand (VOD)
• Up to 595K random read IOPS (4 KiB) in dual-port mode	• Web servers
• 2.5-inch form factor, 15 mm Z-height
• 1 DWPD with 100 % Random Write Workload
• Pin-3 Power Disable Support
• Sanitize Instant Erase (SIE) option[1, 2, 5]
• Self-Encrypting (SED) option[1, 3, 5]
• Self-Encrypting (SED), FIPS 140-2 option[1, 3, 4, 5]
• 5-year limited warranty



Documents

• Product Brief (278KB)
• New PM6 Series 24G SAS SSDs Deliver Industry-Leading Performance (351KB)
• Questions You Need to Ask About 24G SAS and PM6 Series SSDs (408KB)
• Why Deploy PM6 Series 24G SAS SSDs In your Data Center (457KB)
• Enterprise Transformation with 24G SAS (1.3MB)





• Product image may represent a design model.
• Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
• GT/s: Giga Transfers per second.
• A kibibyte (KiB) means 2^10, or 1,024 bytes.
• MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
• DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
• Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
• IOPS: Input Output Per Second (or the number of I/O operations per second).
• [1] The Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED), FIPS (Federal Information Processing Standards) optional models are available.
• [2] SIE option supports Crypto Erase, which is a standardized feature defined by NVM Express Inc.
• [3] SED supports TCG Opal and Ruby SSCs. It has a few unsupported TCG Opal features. For more details, please make inquiries through "Contact us" .
• [4] KIOXIA FIPS drives utilize a security module designed to comply with FIPS 140-2 Level 2 and FIPS 140-3 Level 2, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through "Contact us".
• [5] Optional security feature compliant drives are not available in all countries due to export and local regulations.
• Other company names, product names, and service names may be trademarks of their respective companies.
