• TB67H301FTG(O,EL)
1/1
  • TB67H301FTG(O,EL)

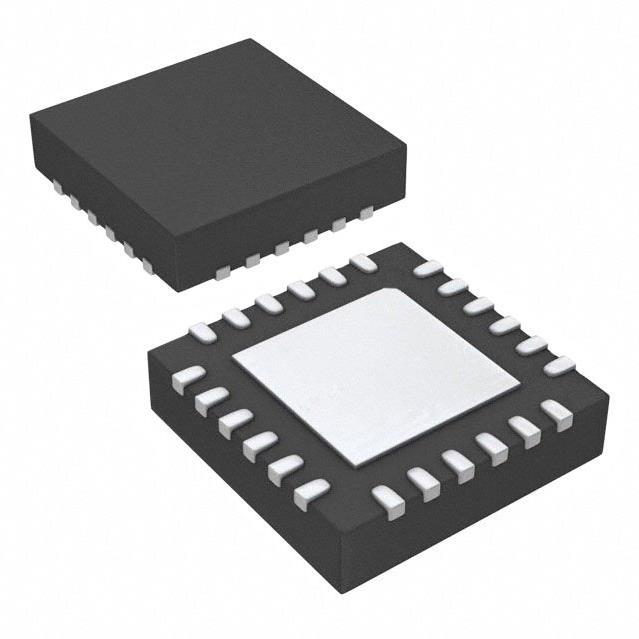

TB67H301FTG(O,EL)

SKU: TB67H301FTG(O,EL)
Manufacture : Toshiba
Mfr Part Number : TB67H301FTG
Product Category : Motion Motor Control
Description : Motor / Motion / Ignition Controllers & Drivers Brush Motor Driver IC
0.0 (0 Reviews)
0 Sold
$1.20 $1.14
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TB67H301FTG(O,EL)
  • TB67H301FTG(O,EL)
1/1
  • TB67H301FTG(O,EL)
  • Description
  • Please Read
Product Attribute         Attribute Value
Manufacture : Toshiba
Datasheet :     → TB67H301FTG  Datasheet (PDF)
Function : 4 function modes (CW / CCW / STOP / Short BRAKE) / Capable of constant current controlling (PWM) / PWM control
Application Scope : DC motor drivers
Class : Full-bridge driver for brushed DC motors
Number of drive motors (brush moter) : 1
RoHS Compatible Product(s) (#): Available
Toshiba Package Name : P-WQFN24-0404-0.50-004
Package Image : → View
Pins : 24
Mounting : Surface Mount
ECCN (US): EAR99
Part Status : Active
HTS : 8542330001
Automotive : No
PPAP:
No
Type : Motor Driver
Motor Type : DC Motor
Output Voltage (V) : 40(Max)
Minimum Operating Supply Voltage (V) : 3
Operating Supply Voltage (V) : 5
Typical Operating Supply Voltage (V) : 5
Maximum Operating Supply Voltage (V) : 5.5
Maximum Power Dissipation (mW) : 3370
Minimum Operating Temperature (°C) : -40
Maximum Operating Temperature (°C) : 85
Supplier Package : WQFN EP
Pin Count : 24
Standard Package Name : QFN
Package Size(mm) : 0.7*4*4
PCB changed : 24
Lead Shape : No Lead
