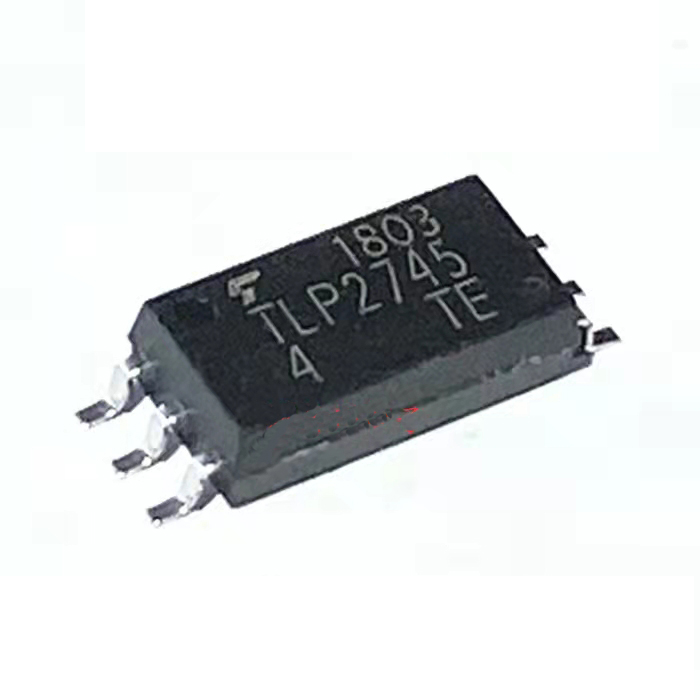

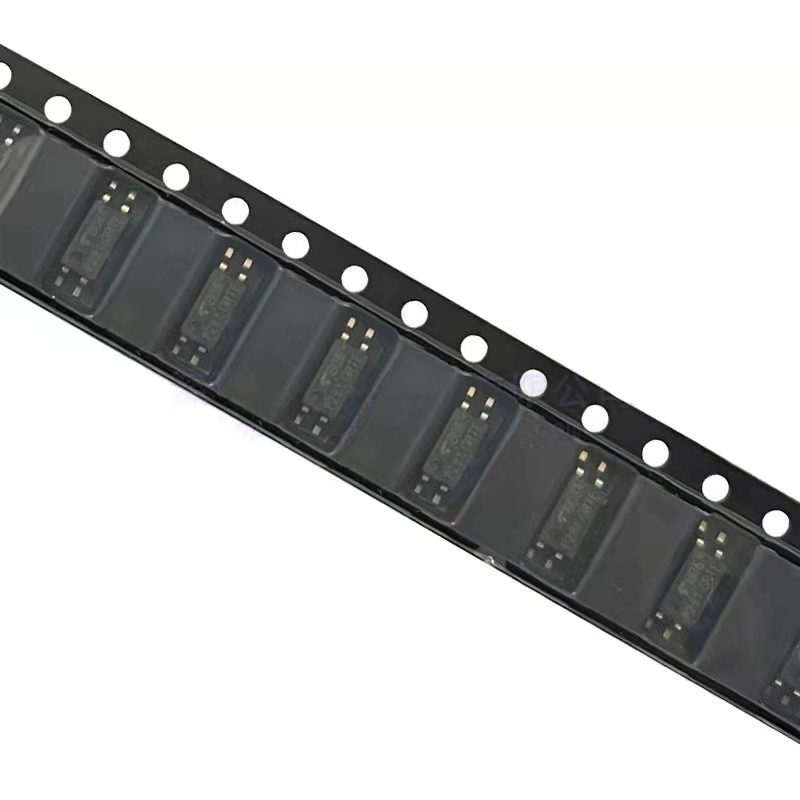

TLP2745 SO6L Photocouplers GaA As Infrared LED Photo IC Buffer Logic Type

Name: TLP2745 SO6L Photocouplers GaA As Infrared LED Photo IC Buffer Logic Type
Brand: Chips Power
Price: 0.69 USD
Availability: InStock

Photocouplers GaAℓAs Infrared LED & Photo IC TLP2745
• Intelligent Power Module Signal Isolation
• Programmable Logic Controllers (PLCs)
• High-Speed Digital Interfacing for Instrumentation and Control Devices

0.0 (0 Reviews)

0 Sold

~~$0.99~~ $0.69

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Toshiba TLP2745 Photocouplers GaAℓAs Infrared LED & Photo IC

Please contact us before payment to confirm price and stock ~~~
If you need large quantity please contact us with a wholesale price.

1. Applications

• Intelligent Power Module Signal Isolation

• Programmable Logic Controllers (PLCs)

• High-Speed Digital Interfacing for Instrumentation and Control Devices

2. General

The Toshiba TLP2745 consists of high-output GaAℓAs light-emitting diode coupled with a high-gain, high-speed photo detector. It is housed in a thin SO6L package of 2.3 mm (max). The TLP2745 has guaranteed the isolation voltage 5 kVrms and compliant with international safety standards for reinforced insulation. This product can operate in power supply voltage 4.5 V to 30 V with the maximum operative temperature of 110 . Since TLP2745 has guaranteed 3 mA low supply current (ICCL/ICCH), and 1.6 mA low threshold input current(IFLH), it contributes to energy saving of devices. It can drive directly from a microcomputer for a low input current. The detector has a totem-pole output stage with current sourcing and sinking capabilities. The TLP2745 has an internal Faraday shield that provides a guaranteed common-mode transient immunity of ±30 kV/µs. The TLP2745 has a buffer output. An inverter output version, the TLP2748, is also available.

3. Features

(1) Buffer logic type (totem pole output)

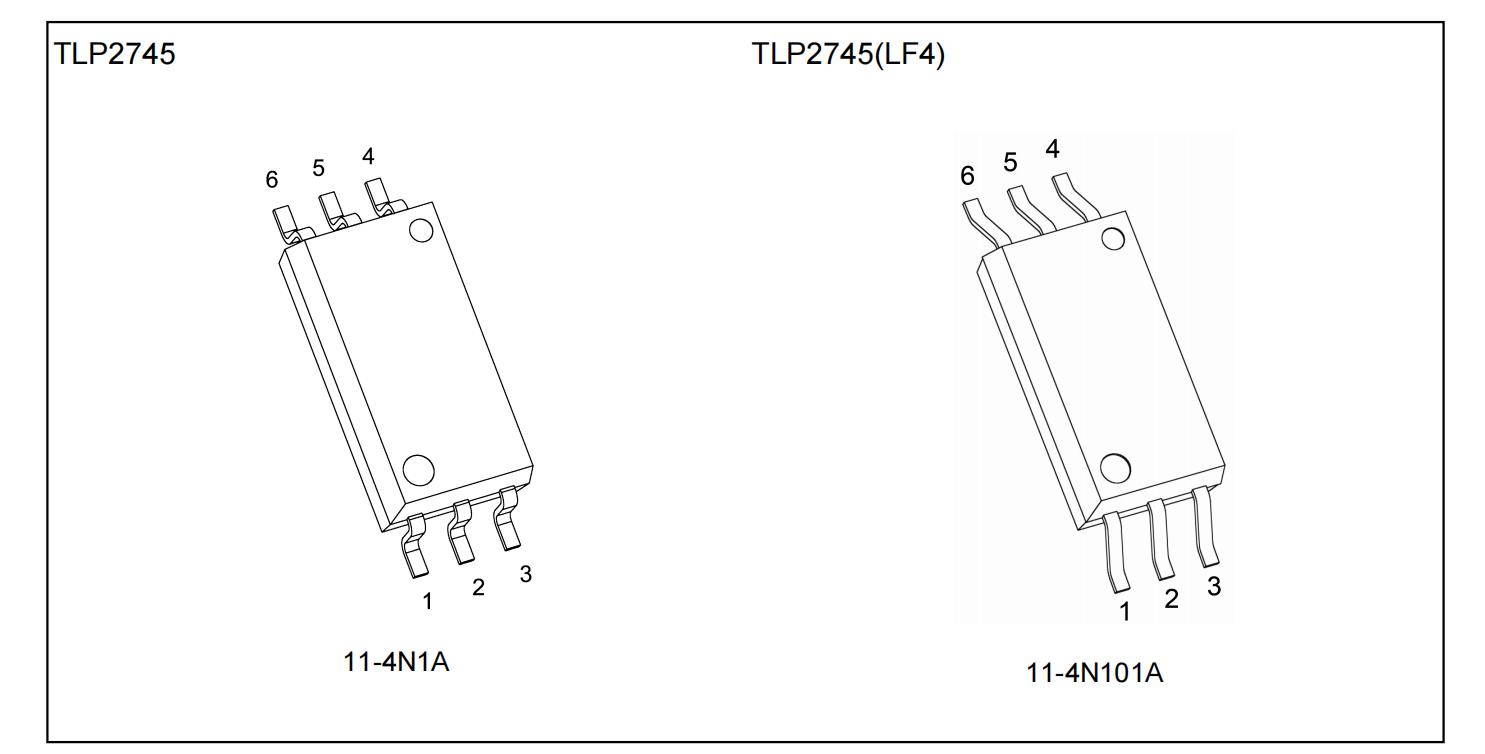

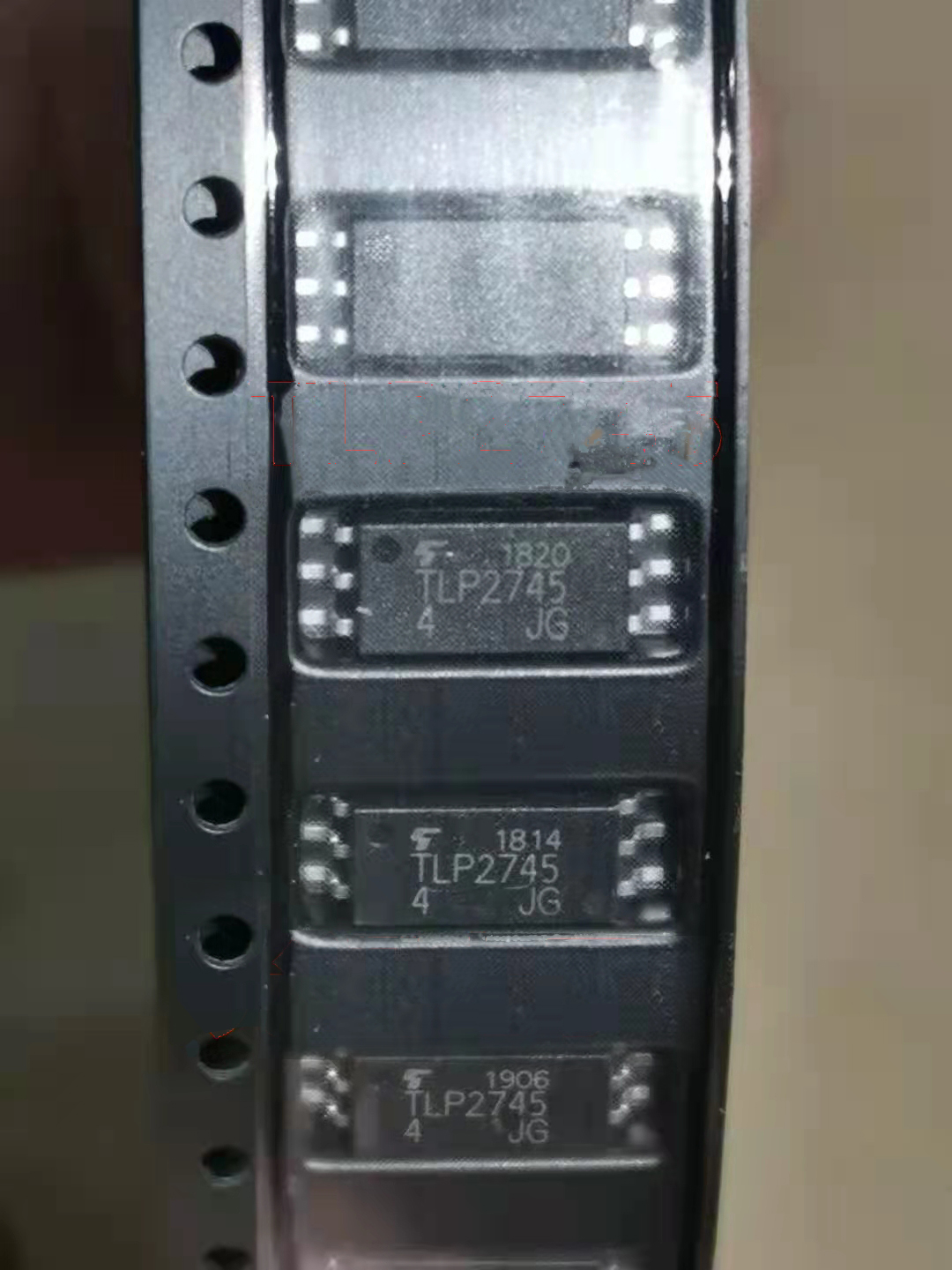

(2) Package: SO6L

(3) Operating temperature: -40 to 110 

(4) Supply voltage: 4.5 to 30 V

(5) Threshold input current: 1.6 mA (max)

(6) Supply current: 3 mA (max)

(7) Propagation delay time: 120 ns (max)

(8) Pulse width distortion: 40 ns (max)

(9) Common-mode transient immunity: ±30 kV/µs (min)

(10) Isolation voltage: 5000 Vrms (min)

(11) Safety standards UL-approved: UL1577, File No.E67349

cUL-approved: CSA Component Acceptance Service No.5A File No.E67349

VDE-approved: EN60747-5-5, EN60065, EN60950-1, EN 62368-1

(Note 1)

Note 1: When a VDE approved type is needed, please designate the

Option (D4).

Click on the number to view the product specification TLP2745
