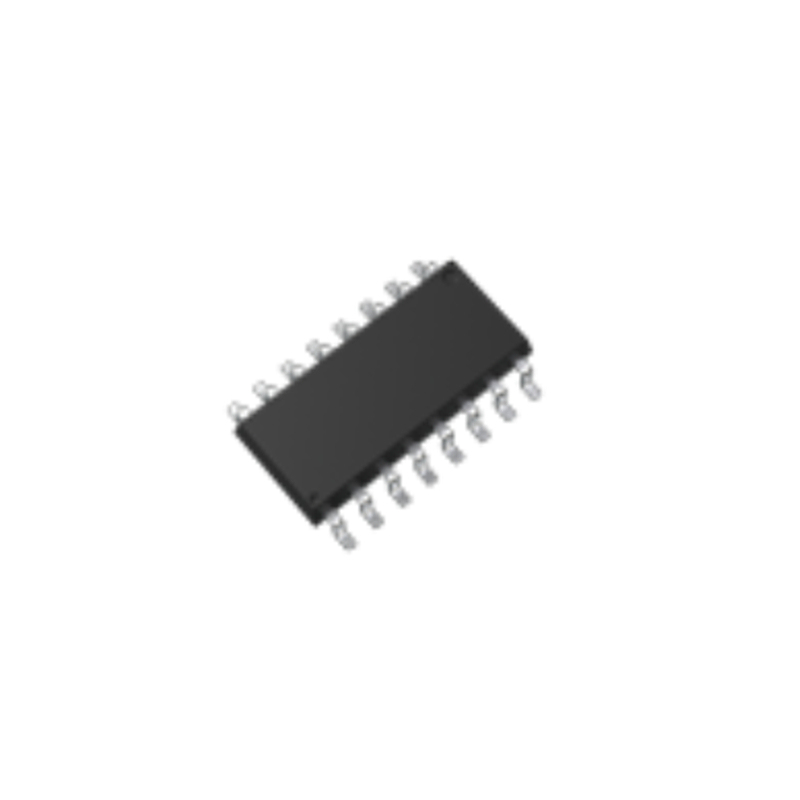

TLP293-4(GB-TP,E(T

SKU: TLP293-4(GB-TP,E(T(O,8,EL,LQ(O

Manufacture : Toshiba
Mfr Part Number : TLP293-4(GB-TP,E
Product Category : Transistor and Photovoltaic Output PhotoCouplers
Description : Transistor Output Optocouplers 4ch Transistor opto coupler 1-Pin Left

0.0 (0 Reviews)

0 Sold

~~$2.00~~ $1.90

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Please Read

Product Attribute	Attribute Value
Manufacture :	Toshiba
Datasheet :	→TLP293-4 (SE Datasheet (PDF)
Feature ：	2.3mm low-profile package / DC input / Low input current drive
Application Scope ：	Communication interface / PLC / Power supply
Function ：	Low IF
Number of Circuits ：	4
Input type :	DC
RoHS Compatible Product(s) (#) ：	Available
Safety Standard ：	Approved : UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 / EN 60065 / EN 60950-1 / CQC (China Quality Certification center) →Download Online Certification of Safety Standard(UL 1577) →Download Online Certification of Safety Standard(cUL)
Toshiba Package Name ：	→ SO16
Package Image :	→ View
Pins :	16
Mounting :	Surface Mount
Width×Length×Height(mm)	10.3×7.0×2.1
Package Dimensions ：	→ View
Land pattern dimensions ：	→ View
CAD data (Symbol, Footprint and 3D model) :	↗ Download from UltraLibrarian^® in your desired CAD format (Note)
Current Transfer Ratio :	100 %
Fall Time :	3 us
Isolation Voltage :	3750 Vrms
Maximum Collector Current :	50 mA
Maximum Collector Emitter Voltage :	80 V
Maximum Collector Emitter Saturation Voltage :	0.3 V
Minimum Operating Temperature :	- 55 C
Mounting Style :	SMD/SMT
Output Type :	Phototransistor
Packaging :	Reel
Pd - Power Dissipation :	70 mW
Product Type :	Transistor Output Optocouplers
Reference Voltage :	5 V
Rise Time :	2 us
Series :	TLP293-4
