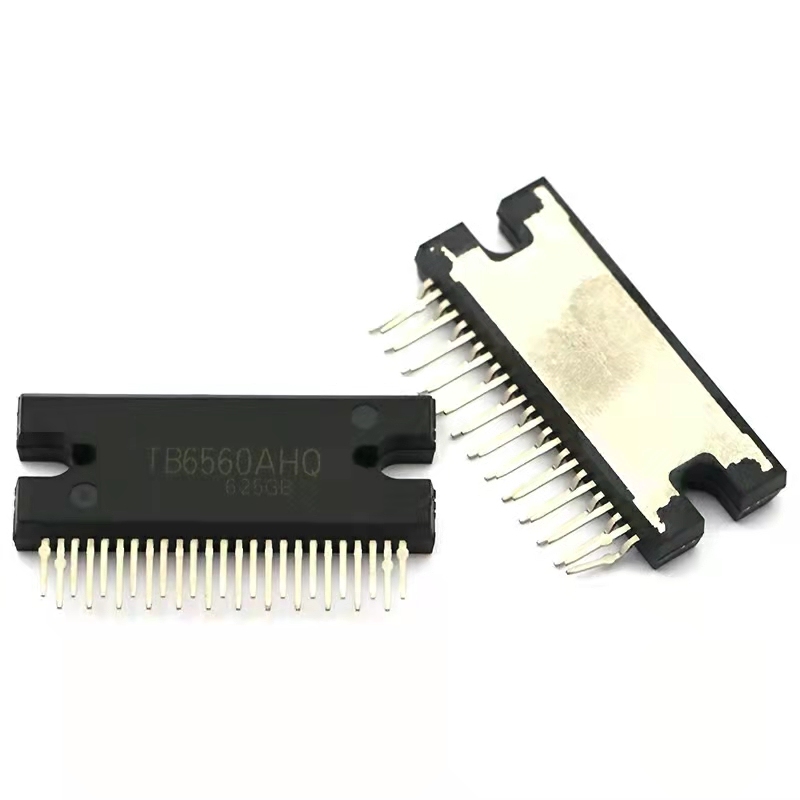

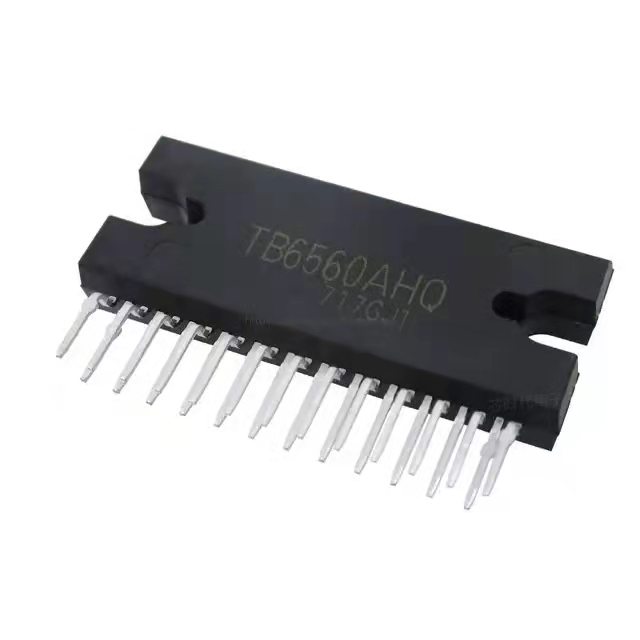

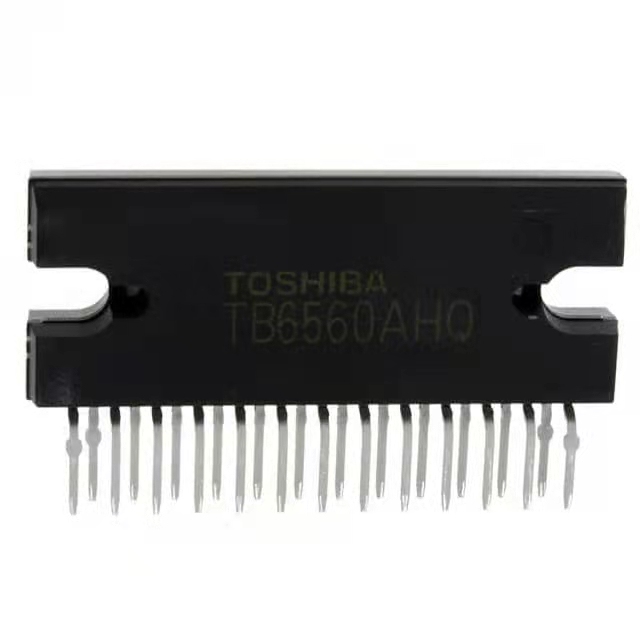

Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip

SKU: TB6560AHQ(O,8)
The TB6560AHQ/AFG is a PWM chopper-type stepping motor driver IC designed for sinusoidal-input microstep control of bipolar stepping motors. The TB6560AHQ/AFG can be used in applications that require 2-phase, 1-2-phase, 2W1-2-phase and 4W1-2-phase exc.
0.0 (0 Reviews)
0 Sold
$6.99 $6.90
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
1/1
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Toshiba TB6560AHQ Stepping Motor Control Driver IC PWM Chopper-Type Bipolar Chip
  • Description
  • Please Read
TOSHIBATB6560AHQ, TB6560AFG BiCD Integrated Circuit Silicon Monolithic PWM Chopper-Type Bipolar Driver IC for Stepping Motor Control

Click here  Product Specifications

If you need large quantity please contact us with a wholesale price

Features

• Single-chip motor driver for sinusoidal microstep control of stepping motors
• High output withstand voltage due to the use of BiCD process:
Ron (upper and lower sum) =
TB6560AHQ: 0.6 Ω (typ.)
TB6560AFG: 0.7 Ω (typ.)
• Forward and reverse rotation
• Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
• High output withstand voltage: VDSS = 40 V
• High output current: IOUT = TB6560AHQ: 3.5 A (peak)
TB6560AFG: 2.5 A (peak)
• Packages: HZIP25-P-1.27
HQFP64-P-1010-0.50
• Internal pull-down resistors on inputs: 100 kΩ (typ.)
• Output monitor pin: MO current (IMO (max) = 1 mA)
• Reset and enable pins
• Thermal shutdown (TSD)
*: These ICs are highly sensitive to electrostatic discharge. When handling them, ensure that the environment is
protected against electrostatic discharge. Ensure also that the ambient temperature and relative humidity are
maintained at reasonable level.
